| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

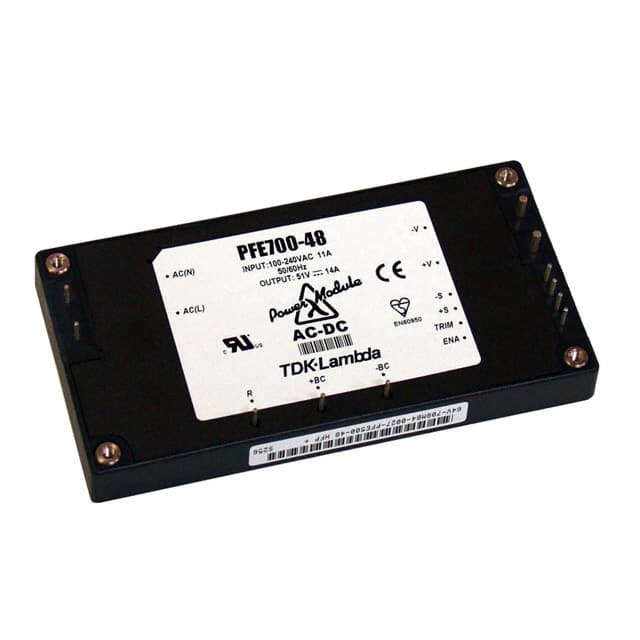

The TDK Corporation PFE700S-48 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 700W of power with an output current of 14A and operates from a wide input voltage range of 85 to 265 VAC.
This converter features Through Hole mounting and has dimensions of 116.8mm x 61.0mm x 12.7mm. It offers an efficiency of 86% and operates within a temperature range of -40°C to 100°C with derating. The unit is compliant with standard 60950-1 and carries CE, cULus approval agency certifications.
Key specifications include a single output, universal input capability, and a robust operating temperature range, making it suitable for various commercial applications requiring reliable power conversion.
85 to 265 VAC.
11-DIP Module, Full Brick.
-40°C to 100°C (with derating).
51V.
14A.
700W.
86%.
