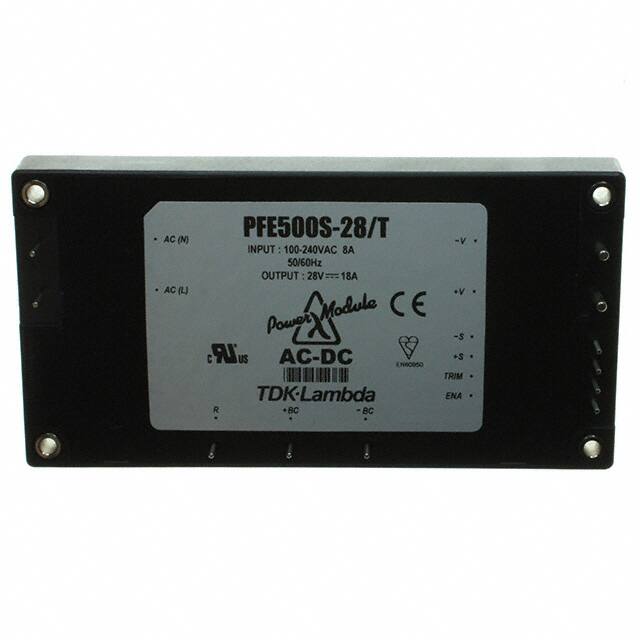

PFE500S-28/T The TDK Corporation PFE500S-28/T is an enclosed AC/DC converter providing 500W of power with a 28V output. It operates from a universal 85-265 VAC input.
Mfr Part #:

PFE500S-28/T

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation PFE500S-28/T is an enclosed AC/DC converter providing 500W of power with a 28V output. It operates from a universal 85-265 VAC input.
Stock on Request

PFE500S-28/T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Standard Number
Type
Voltage
Width

PFE500S-28/T Description

Short technical summary and product information.

The TDK Corporation PFE500S-28/T is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It features a universal input voltage range of 85 to 265 VAC, delivering a stable 28VDC output at up to 18A, for a total power rating of 500W. The converter boasts an efficiency of 83% and includes features like universal input.



This model is housed in a Through Hole package with dimensions of 122.0mm in length, 70.0mm in width, and 12.7mm in height. It operates within a wide temperature range of -40°C to 100°C with derating. The PFE500S-28/T is compliant with standard 60950-1 and carries CE, cULus approval agencies.



It is suitable for various commercial applications requiring a reliable power conversion solution. The part is also noted as RoHS3 Compliant and Lead Free.

PFE500S-28/T Quick Information

Product Type: AC DC Converter
Canonical Name: TDK Corporation PFE500S-28/T AC/DC Power Supply

PFE500S-28/T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PFE500S-28/T Features

  • Enclosed AC/DC converter with 500W power.
  • Provides a 28VDC output voltage.
  • Universal input voltage range of 85-265 VAC.
  • Through Hole mounting for easy integration.
  • Operates from -40°C to 100°C.

PFE500S-28/T Applications

  • Suitable for ITE (Commercial) applications.
  • Reliable power conversion for various systems.
  • Designed for industrial control systems.
  • Used in test and measurement equipment.

PFE500S-28/T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the PFE500S-28/T?

85 to 265 VAC.

What is the output voltage and current?

28 VDC at 18A.

What is the power rating?

500W.

What is the operating temperature range?

-40°C to 100°C with derating.

What is the package type?

11-DIP Module, Full Brick.

What approvals does the PFE500S-28/T have?

CE and cULus.

What is the efficiency?

83%.
