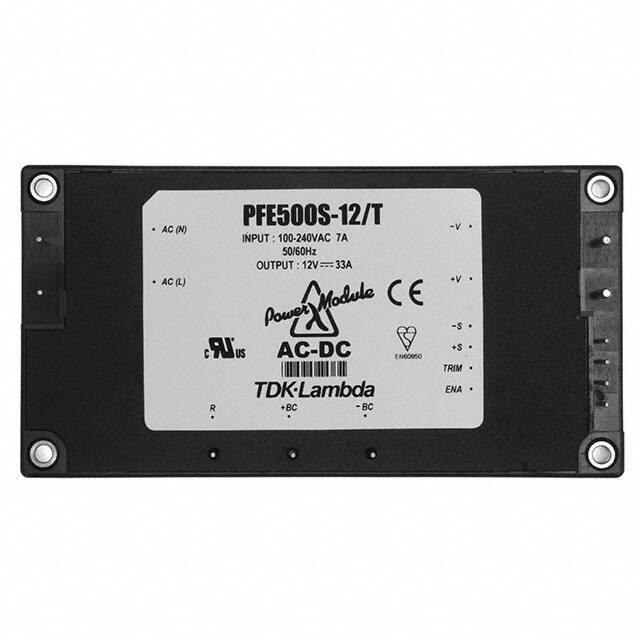

PFE500S-12/T The TDK Corporation PFE500S-12/T is a 500W AC/DC converter with a 12V output. It features universal input and 83% efficiency.
Mfr Part #:

PFE500S-12/T

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation PFE500S-12/T is a 500W AC/DC converter with a 12V output. It features universal input and 83% efficiency.
Stock on Request

PFE500S-12/T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Input Voltage
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Package / Case
Power (Watts)
Standard Number
Type
Voltage
Width

PFE500S-12/T Description

Short technical summary and product information.

The TDK Corporation PFE500S-12/T is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum current of 33A, delivering a total power of 500W.



This converter operates with a universal input voltage range of 85 to 265 VAC and boasts an efficiency of 83%. The operating temperature range is -40°C to 100°C, with derating applied. Its dimensions are 122.0mm x 70.0mm x 12.7mm.



Designed for through-hole mounting, the PFE500S-12/T comes in a 11-DIP Module, Full Brick package. It features universal input and is approved by CE and cULus agencies, adhering to standard 60950-1.

PFE500S-12/T Quick Information

Product Type: AC DC Converter
Series: PFE500S
Canonical Name: TDK Corporation PFE500S-12/T AC/DC Converter
Subcategory: AC DC Converters

PFE500S-12/T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PFE500S-12/T Features

  • Provides 12V output at 33A.
  • Delivers 500W of power.
  • Operates with universal input voltage.
  • Features 83% efficiency.
  • Enclosed, through-hole mounted package.

PFE500S-12/T Applications

  • Used in industrial power supplies.
  • Ideal for telecom equipment.
  • Suitable for distributed power systems.
  • Applicable in high-density power designs.

PFE500S-12/T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

85 to 265 VAC.

What is the output voltage and current?

12V at 33A.

What is the power rating?

500W.

What is the efficiency?

83%.

What is the operating temperature range?

-40°C to 100°C with derating.

What is the package type?

11-DIP Module, Full Brick.

What is the mounting type?

Through Hole.
