| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

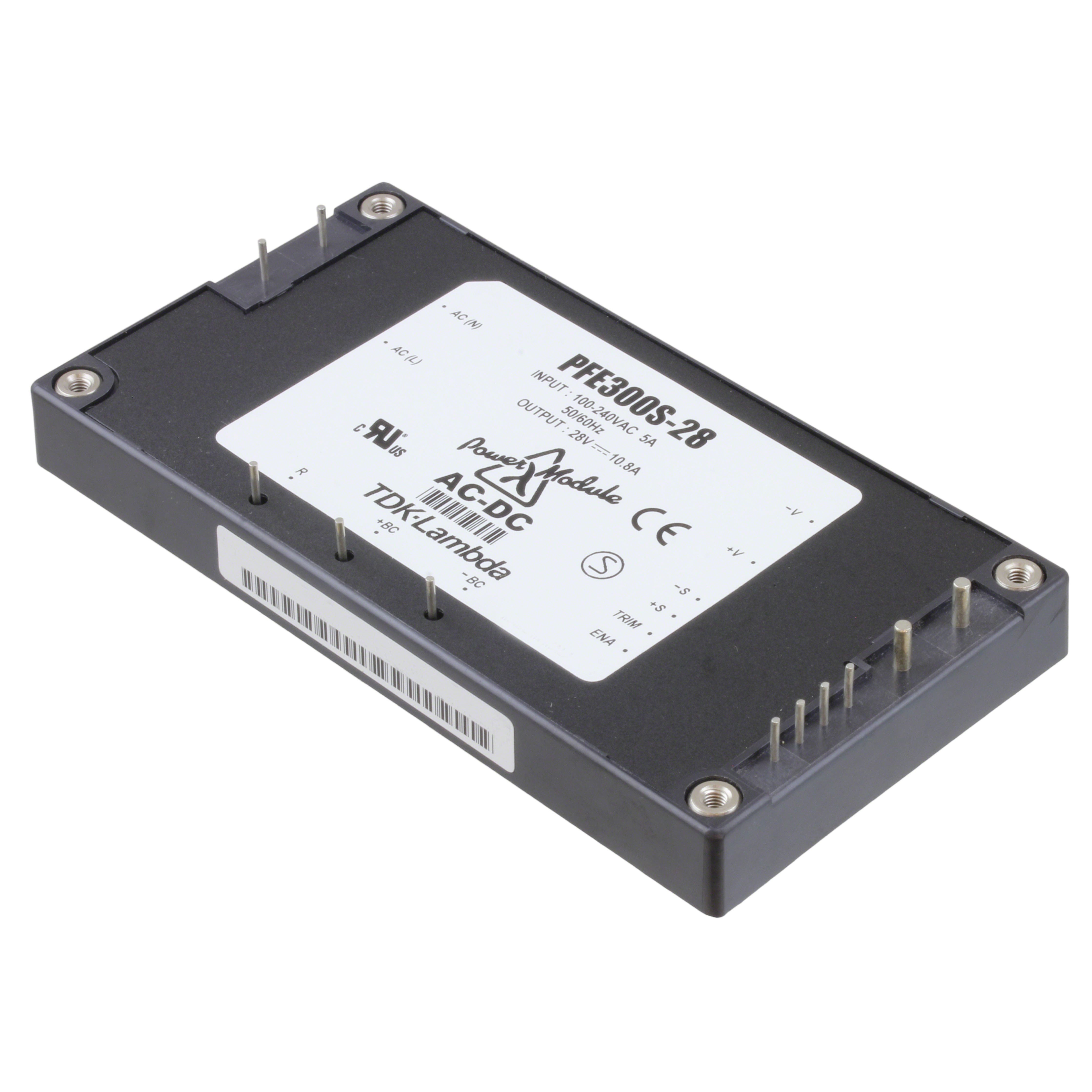

The TDK Corporation PFE300S-28 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It features a power rating of 300W and provides a single output of 10.8A.
This converter operates with a wide input voltage range of 85 to 265 VAC and boasts an efficiency of 86%. Key features include universal input capability and compliance with standard 60950-1.
The physical dimensions are 116.8mm in length, 61.0mm in width, and 12.7mm in height. It is designed for Through Hole mounting and comes in an 11-DIP Module, Full Brick package.
Environmental specifications include an operating temperature range of -40°C to 100°C with derating. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is REACH Unaffected.
The PFE300S-28 provides an output current of 10.8A.
The PFE300S-28 accepts an input voltage range of 85 to 265 VAC.
The PFE300S-28 has a power rating of 300 W.
The operating temperature range is -40°C to 100°C, with derating.
The PFE300S-28 is in an 11-DIP Module, Full Brick package.
The PFE300S-28 is designed for Through Hole mounting.
The RoHS status is RoHS3 Compliant.
