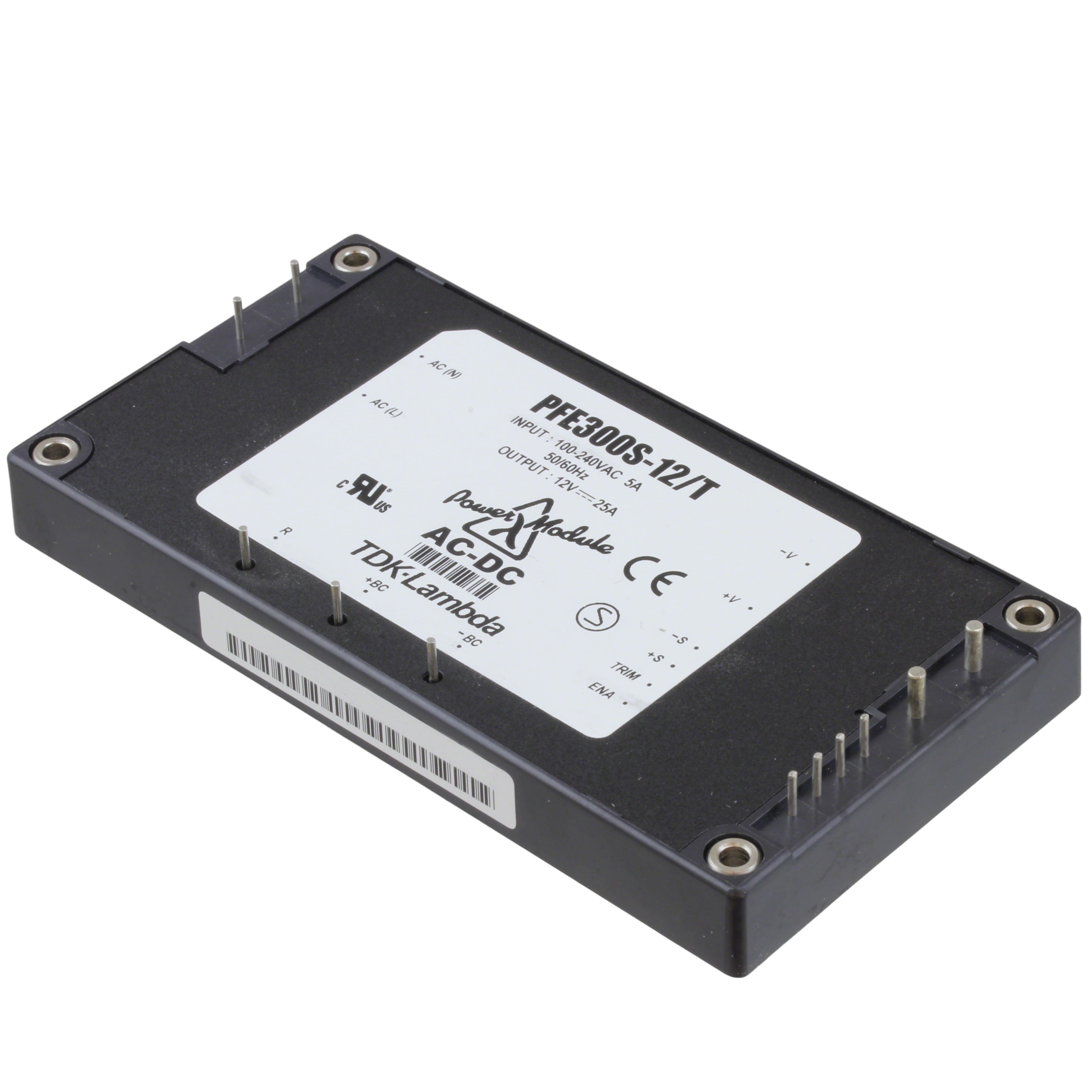

PFE300S-12/T The TDK Corporation PFE300S-12/T is a 300W AC/DC converter with a 12V output. It features a universal input voltage range of 85-265 VAC and is designed for through-hole mounting.
Mfr Part #:

PFE300S-12/T

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation PFE300S-12/T is a 300W AC/DC converter with a 12V output. It features a universal input voltage range of 85-265 VAC and is designed for through-hole mounting.
Stock on Request

PFE300S-12/T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage
Width

PFE300S-12/T Description

Short technical summary and product information.

The TDK Corporation PFE300S-12/T is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 300W with a single 12V output and a current rating of 25A.



Key electrical specifications include an input voltage range of 85 to 265 VAC and an efficiency of 86%. The converter features universal input and is compliant with standard number 60950-1. It operates within a temperature range of -40°C to 100°C.



Mechanically, this converter is housed in a full brick package with through-hole mounting. Its dimensions are 116.8mm in length, 61.0mm in width, and 12.7mm in height. The approval agencies include CE and cULus, indicating compliance with relevant safety standards.

PFE300S-12/T Quick Information

Product Type: AC DC Converter
Series: PFE300S
Canonical Name: TDK Corporation PFE300S-12/T AC/DC Converter
Subcategory: AC DC Converters

PFE300S-12/T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PFE300S-12/T Features

  • 300W enclosed AC/DC power converter.
  • 12V output voltage at 25A.
  • Universal input voltage range 85-265 VAC.
  • Through-hole mounting in full brick package.
  • Operates from -40°C to 100°C.

PFE300S-12/T Applications

  • Suitable for commercial ITE equipment.
  • Ideal for industrial control systems.
  • Used in telecommunications infrastructure.
  • Applicable in test and measurement devices.

PFE300S-12/T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the PFE300S-12/T?

85 to 265 VAC.

What is the package type of the PFE300S-12/T?

11-DIP Module, Full Brick.

What is the operating temperature range?

-40°C to 100°C.

What is the output voltage?

12V DC.

What is the output current?

25A.

What is the efficiency?

86%.

What approvals does the PFE300S-12/T have?

CE and cULus.
