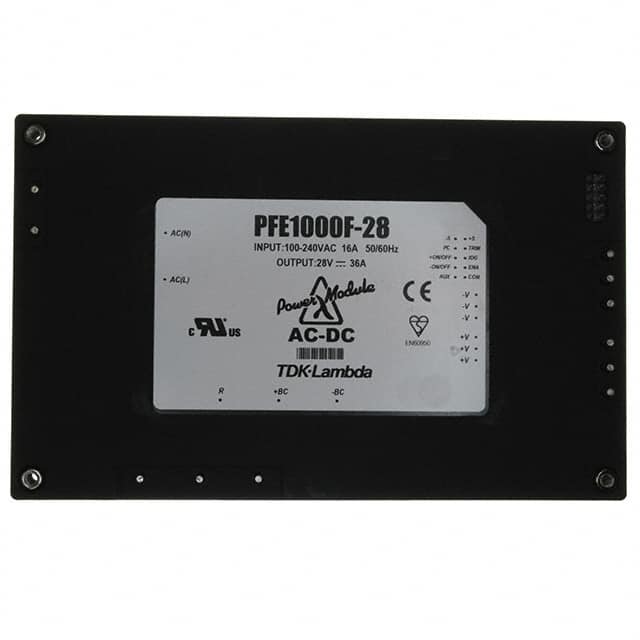

PFE1000F-28/T The TDK Corporation PFE1000F-28/T is an enclosed AC/DC converter with 1000W output power and a 28V output voltage. It features a wide input voltage range of 85-265 VAC.
Mfr Part #:

PFE1000F-28/T

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation PFE1000F-28/T is an enclosed AC/DC converter with 1000W output power and a 28V output voltage. It features a wide input voltage range of 85-265 VAC.
Stock on Request

PFE1000F-28/T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage
Width

PFE1000F-28/T Description

Short technical summary and product information.

This TDK Corporation PFE1000F-28/T is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It delivers a robust 1000W of power with a 28V output voltage and a maximum output current of 36A. The converter operates efficiently at 84% and accepts a wide input voltage range from 85 to 265 VAC, featuring universal input capabilities.



Designed for reliable integration, this unit is of the enclosed type and utilizes Through Hole mounting. Its dimensions are 160.0mm in length, 100.0mm in width, and 13.4mm in height. The operating temperature range is -40°C to 100°C, with derating applied at higher temperatures. Key features include remote on/off functionality and compliance with CE and cULus approval agencies, adhering to standard 60950-1.

PFE1000F-28/T Quick Information

Product Type: AC DC Converter
Series: PFE1000F
Canonical Name: TDK Corporation PFE1000F-28/T AC/DC Converter
Subcategory: AC DC Converters

PFE1000F-28/T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PFE1000F-28/T Features

  • 1000W output power capability.
  • Wide 85-265 VAC input voltage range.
  • Enclosed type with Through Hole mounting.
  • Features remote on/off control.
  • Operates from -40°C to 100°C.

PFE1000F-28/T Applications

  • Suitable for commercial ITE (Information Technology Equipment).
  • Ideal for high-power board-mounted power supply designs.
  • Used in industrial and telecom power systems.
  • Applicable for distributed power architectures.

PFE1000F-28/T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the PFE1000F-28/T?

The output voltage is 28V and the output current is 36A.

What is the input voltage range for this converter?

The input voltage range is 85 to 265 VAC.

What is the operating temperature range?

The operating temperature range is -40°C to 100°C with derating.

What is the package type and mounting style?

The package is a 21-DIP module with through-hole mounting.

What is the efficiency of this AC/DC converter?

The efficiency is 84%.

What are the dimensions of the PFE1000F-28/T?

The dimensions are 160.0mm length, 100.0mm width, and 13.4mm height.

What approvals does this converter hold?

It holds CE and cULus approvals to standard 60950-1.
