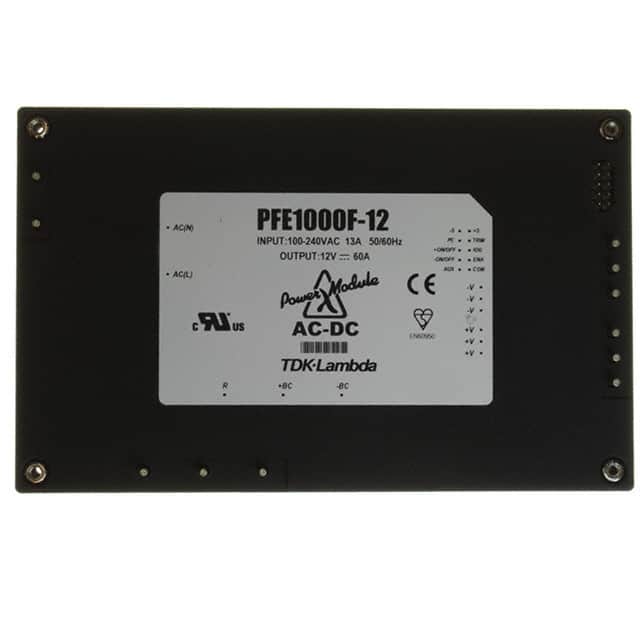

PFE1000F-12/T The TDK Corporation PFE1000F-12/T is an enclosed AC DC converter with 1000W power output. It features a 60A current rating and operates from 85-265 VAC input.
Mfr Part #:

PFE1000F-12/T

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation PFE1000F-12/T is an enclosed AC DC converter with 1000W power output. It features a 60A current rating and operates from 85-265 VAC input.
Stock on Request

PFE1000F-12/T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage

PFE1000F-12/T Description

Short technical summary and product information.

This TDK Corporation PFE1000F-12/T is an enclosed AC DC converter designed for ITE (Commercial) applications. It delivers a robust 1000W of power with an output current of 60A.



The converter operates across a wide input voltage range of 85 to 265 VAC and boasts an efficiency of 84%. Key features include remote on/off functionality and universal input capability. The operating temperature range is -40°C to 100°C, with derating applied.



With a compact size of 160.0mm x 100.0mm x 13.4mm, this unit is suitable for board mounting. It features Through Hole mounting and is certified by CE and cULus, adhering to the standard 60950-1.



The package type is a 21-DIP Module, and it is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.

PFE1000F-12/T Quick Information

Product Type: AC DC Converter
Canonical Name: TDK Corporation PFE1000F-12/T AC/DC Converter
Subcategory: AC DC Converters

PFE1000F-12/T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PFE1000F-12/T Features

  • 1000W power output capability.
  • 60A maximum output current.
  • Wide 85-265 VAC input range.
  • Efficient operation at 84%.
  • Operates from -40°C to 100°C.

PFE1000F-12/T Applications

  • Used in commercial ITE equipment.
  • Ideal for industrial automation systems.
  • Suitable for networking and telecom power.
  • Provides 12V power for high-current loads.

PFE1000F-12/T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the PFE1000F-12/T?

85 to 265 VAC.

What is the package type of this converter?

21-DIP Module.

What is the operating temperature range?

-40°C to 100°C with derating.

What is the efficiency of the PFE1000F-12/T?

84%.

What approvals does the PFE1000F-12/T hold?

CE and cULus (60950-1).

What is the mounting type of this converter?

Through Hole.

What is the output current rating?

60A.
