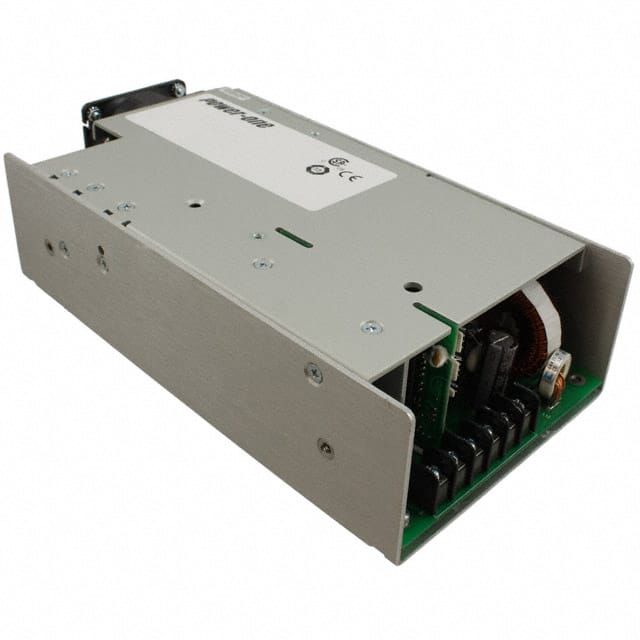

The Bel Power Solutions PFC500-1028F is part of the PerFormanCe Power Series, designed for communications, commercial, and industrial systems. This AC/DC converter delivers 500W of power with a nominal output voltage of 28V and a maximum output current of 17.9A. It operates with a wide input voltage range of 85-264 VAC and features Power Factor Correction meeting EN 61000-3-2 standards.
Key electrical specifications include 75% minimum efficiency at full load and 110 VAC input. The unit provides fully regulated outputs with features such as remote sense, logic level inhibit, and current share for redundant applications. It is protected against overtemperature, overvoltage, and overcurrent conditions.
Mechanically, the PFC500-1028F is designed for chassis mounting with dimensions of 266.7mm x 127.0mm x 63.5mm. It operates within a temperature range of 0°C to 70°C with derating. The series is approved to international regulatory standards, including CE.
This converter requires 300 LFM forced-air cooling for operation and offers optional metric or SAE mountings. It is suitable for ITE (Commercial) applications and meets input transient and ESD compliance to EN 61000-4-2/-3/-4/-5.
The nominal output voltage is 28V, with an adjustable range from 25.2V to 30.8V.
The unit utilizes a chassis mount configuration for secure installation.
The operating temperature spans from 0°C to 70°C when derated.
It accepts a continuous AC input voltage range of 85V to 264V.
Yes, it features active power factor correction meeting EN 61000-3-2 standards.
Full rated load operation requires 300 LFM forced air cooling.
