| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

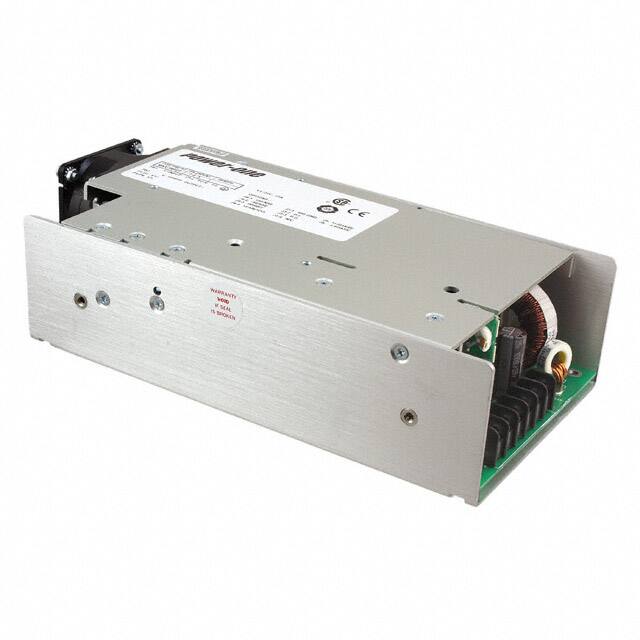

The Bel Power Solutions PFC500-1024F is an enclosed AC/DC converter designed for commercial ITE applications. It provides a regulated 24V DC output with a maximum current of 21A, delivering up to 500W of power.
This converter operates with a universal input voltage range of 85 to 264 VAC and features 75% efficiency. Key electrical specifications include line regulation of 0.5% and load regulation of 0.2%. The output ripple and noise are kept to a maximum of 1% peak-to-peak.
Designed for reliable operation, the PFC500-1024F includes features such as adjustable output, DC input capability, load sharing, power factor correction (PFC), remote sense, and standby output. It is protected against overtemperature, overvoltage, and overcurrent conditions. The operating temperature range is from 0°C to 70°C with derating.
Mechanically, the unit is designed for chassis mounting with dimensions of 266.7mm x 127.0mm x 63.5mm. It meets CE approval standards and is RoHS3 compliant.
The PFC500-1024F has a nominal output voltage of 24V.
The maximum output current is 21.0 A with 300 LFM forced air.
The PFC500-1024F accepts a continuous input voltage range of 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
Yes, the PFC500-1024F is RoHS3 Compliant.
