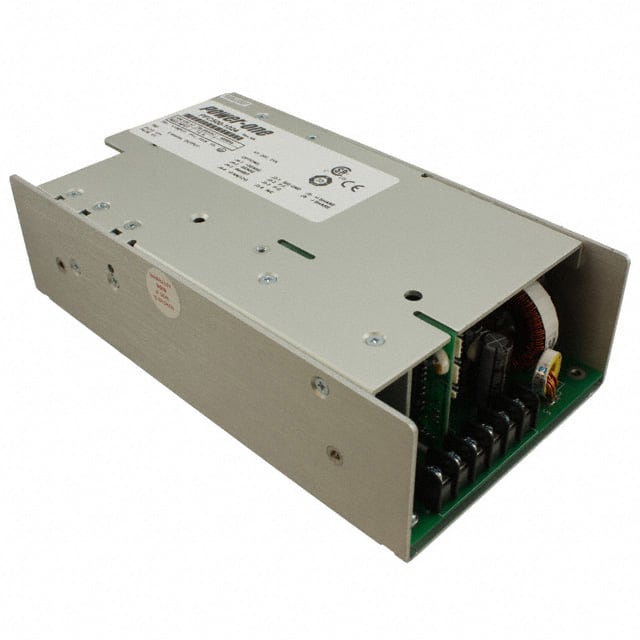

The Bel Power Solutions PFC500-1024 is an enclosed AC/DC converter designed for commercial ITE applications. It delivers a regulated 24V output with a maximum current of 21A, providing up to 500W of power.
This converter operates with a wide input voltage range of 85 to 264 VAC and features Power Factor Correction (PFC) meeting EN 61000-3-2 standards. Key electrical specifications include 75% minimum efficiency at full load (110 VAC), line regulation of 0.5%, and load regulation of 0.2%. The output voltage is adjustable within a range of 21.6V to 26.4V.
Designed for reliability, the PFC500-1024 includes features such as remote sense, load sharing for redundant applications, and standby output. It operates within a temperature range of 0°C to 70°C with derating. The unit is chassis mounted and has dimensions of 228.6mm x 127.0mm x 63.5mm.
Compliance includes CE approval. The PFC500 series is noted for high power density and reliability, suitable for communications, commercial, and industrial systems.
The AC input voltage range is 85 VAC to 264 VAC continuous.
The nominal output voltage is 24 V DC, adjustable from 21.6 V to 26.4 V.
With 300 LFM forced air cooling, the maximum output current is 21.0 A.
The operating temperature range is 0°C to 70°C with derating.
Yes, the power factor is typically 0.98, compliant with EN61000-3-2.
The typical hold-up time is 20 ms over the full AC input range at full rated load.
The enclosure measures 228.6 mm in length, 127.0 mm in width, and 63.5 mm in height.
