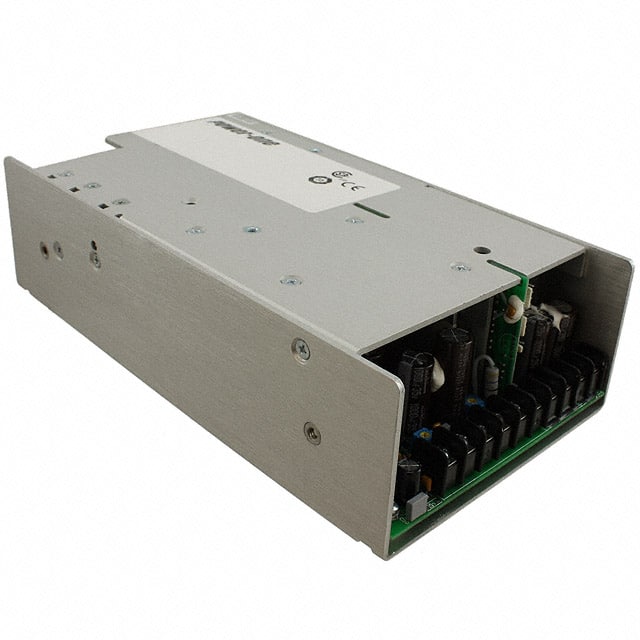

The Bel Power Solutions PFC375-4201 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It offers a robust 375W of power with a universal input voltage range of 85 to 264 VAC.
This converter provides four distinct output voltages: 24V at 10A, 5V at 10A, and two 15V outputs at 4A each. Key features include adjustable output, load sharing, power factor correction (PFC), and remote sense capabilities, making it a versatile power solution.
With a chassis mount type, the PFC375-4201 has dimensions of 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm). It operates within a temperature range of 0°C to 70°C with derating and has an isolation voltage of 2.6 kV. The efficiency is rated at 68% and it is CE approved.
85 to 264 VAC.
Enclosed chassis-mount package.
0°C to 70°C with derating.
Four outputs: 24V, 5V, and dual ±15V.
375 watts.
24V at 10A, 5V at 10A, ±15V at 4A each.
Adjustable output, load sharing, PFC, remote sense, and universal input.
