| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

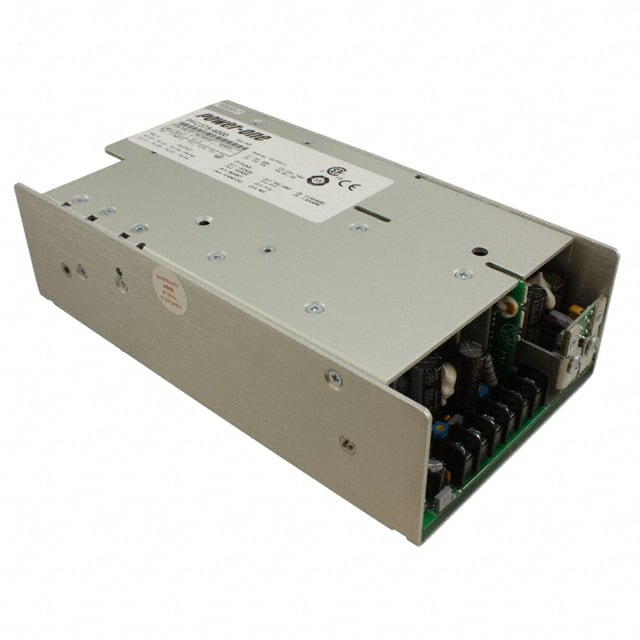

The Bel Power Solutions PFC375-4000 is a 375W AC-DC converter designed for ITE (Commercial) applications. It offers a universal input voltage range of 85-264VAC and provides four output voltages: 5V, 12V, 12V, and 5V, with corresponding currents of 40A, 16A, 6A, and 3A. This enclosed converter is designed for chassis mounting, making it suitable for integration into various systems.
Key features include adjustable output, load sharing, power factor correction (PFC), remote sense, and universal input capabilities. The operating temperature range is from 0°C to 70°C with derating. Its dimensions are 228.6mm in length, 127.0mm in width, and 63.5mm in height. The efficiency is rated at 68%.
This product is discontinued. Recommended replacements may be available. Please consult the manufacturer for further details.
The PFC375-4000 has a power rating of 375W.
The input voltage range is 85 to 264 VAC.
The PFC375-4000 has 4 outputs.
The output voltages are 5V, 12V, 12V, and 5V.
The operating temperature range is 0°C to 70°C, with derating.
It uses chassis mount.
