| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

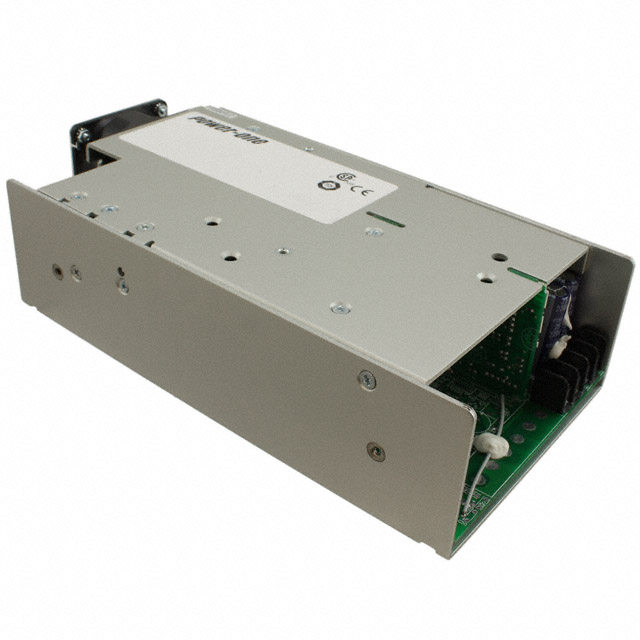

The Bel Power Solutions PFC375-1012F is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a current rating of 30A, delivering a total power of 375W.
Key electrical specifications include a wide input voltage range of 85 to 264 VAC and an efficiency of 68%. The converter offers features such as adjustable output, load sharing, PFC, and remote sense. It has an isolation voltage of 2.6 kV.
This unit is chassis mounted and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 228.6mm x 127.0mm x 63.5mm. The PFC375-1012F is part of the PFC375 (375W) series.
Environmental compliance includes REACH Unaffected status and a Moisture Sensitivity Level of 1 (Unlimited). The RoHS status is non-compliant.
The PFC375-1012F provides a single output of 12V at 30A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The efficiency is rated at 68%.
The input-to-output isolation voltage is 2.6 kV.
The dimensions are 228.6mm x 127.0mm x 63.5mm (9.00" x 5.00" x 2.50").
Yes, it includes active power factor correction (PFC).
