| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | 24 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Current | |
| Fan Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

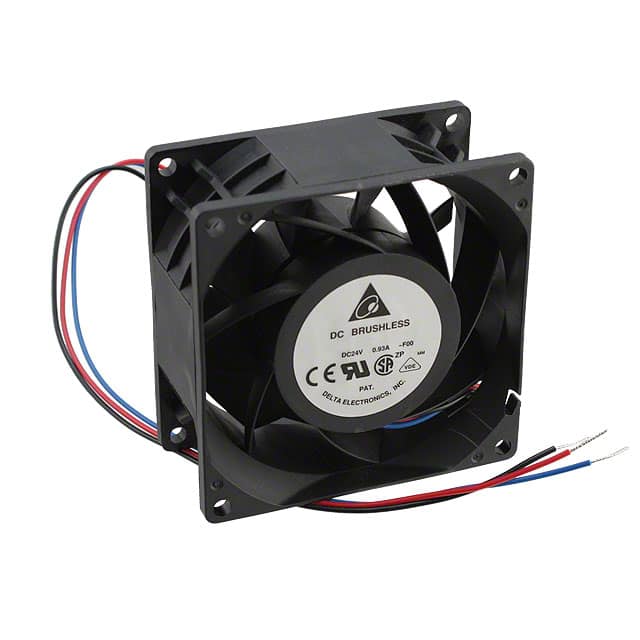

This Delta Electronics PFB0824UHE-F00 is a DC Axial Fan with a robust construction suitable for various thermal management needs. It features a durable Ball bearing system for reliable operation and longevity.
The fan operates at 24VDC with a power consumption of 18.48W, delivering an impressive airflow of 107.3 CFM (3.00 m³/min) at a speed of 7500 RPM. Its noise level is rated at 61.0 dB(A), and it provides a static pressure of 340.8 Pa. The operating temperature range is from -10°C to 60°C.
With dimensions of 80mm x 80mm x 38mm, this fan is designed for efficient integration into systems. It includes features such as Locked Rotor Protection and a Speed Sensor (Tach) for enhanced operational monitoring and safety. The termination style is 3 Wire Leads, facilitating easy connection.
This fan is suitable for applications requiring consistent and powerful air movement, such as in IT equipment, industrial machinery, or telecommunications hardware where effective heat dissipation is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 24 VDC.
The fan measures 80mm in length and 38mm in width.
The airflow is 3.00 cubic meters per minute.
The static pressure is 340.8 Pa.
The noise level is 61.0 dB(A).
The operating temperature range is from -10°C to 60°C.
RoHS compliance status is unverified.
