| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,803 pcs
|
1803 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Clock Frequency | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |

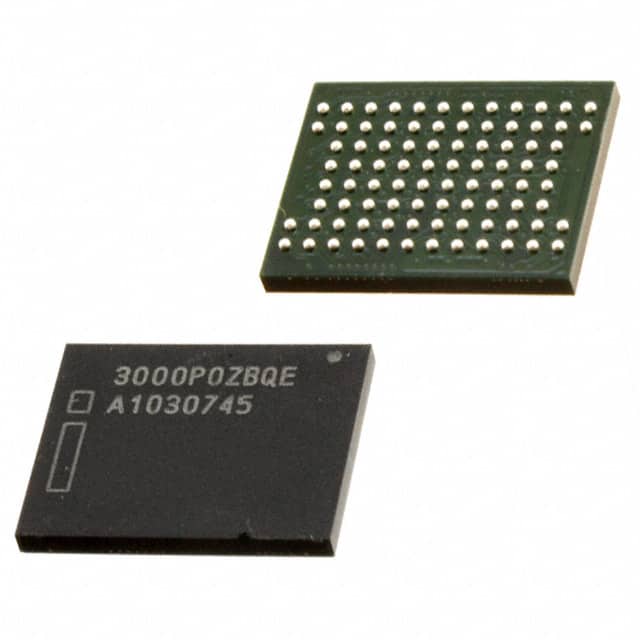

The Micron Technology PF48F3000P0ZBQEA is a 128Mbit parallel NOR flash memory device. It offers high performance with a 65ns initial access time for TSOP packages and 75ns for Easy BGA and QUAD+ packages. The memory supports a 52MHz synchronous-burst read mode with zero WAIT states and a 17ns clock-to-data output.
This flash memory operates with a core voltage range of 1.7V to 2.0V and an I/O voltage range of 1.7V to 3.6V. It features an asymmetrically-blocked architecture with four 32-KByte parameter blocks and 128-KByte array blocks. Enhanced security features include absolute write protection, power-transition erase/program lockout, and individual block locking capabilities.
The PF48F3000P0ZBQEA is available in an 88-TFBGA, CSPBGA package and is designed for surface mount applications. It has an operating temperature range of -40°C to 85°C (TC) and is compliant with JESD47E standards, offering a minimum of 100,000 erase cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core voltage (VCC) is 1.7V to 2.0V, and the I/O voltage (VCCQ) is 1.7V to 3.6V.
It is available in a surface-mount 88-SCSP (8x10) package, also known as 88-TFBGA/CSPBGA.
-40°C to +85°C
52 MHz
30µA typical, 55µA maximum.
Minimum 100,000 erase cycles.
Initial access time is 75ns (TSOP) or 65ns (Easy BGA/QUAD+), with 25ns in 8-word asynchronous-page read mode.
