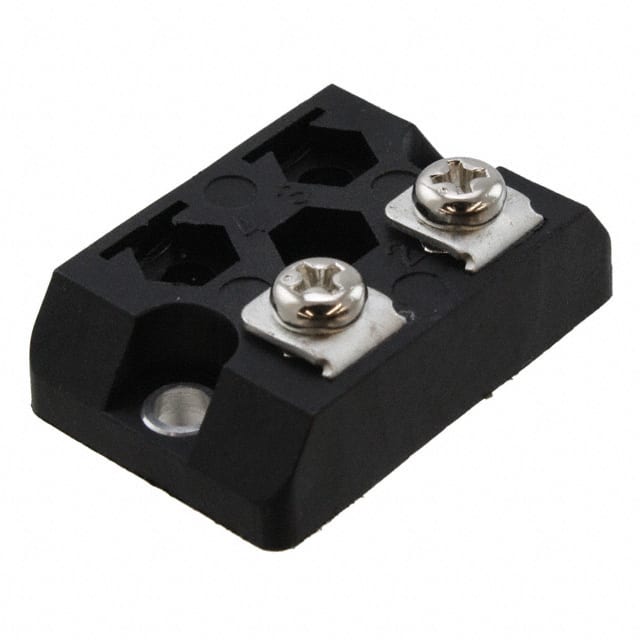

The Riedon PF2270 Series, including the PF2272-0R1J1, offers high-performance power film resistors designed for demanding applications. This specific model features a resistance value of 0.1 Ohms with a tolerance of ±5% and a substantial power rating of 200 Watts when used with a heatsink.
Designed for chassis mounting, this resistor utilizes M4 threaded leads for secure connections and comes with an isolated back plate. Its construction includes an aluminum oxide substrate and a copper flange, contributing to its robust thermal and electrical performance. The operating temperature range is -55°C to 155°C, making it suitable for various environmental conditions.
Key specifications include a temperature coefficient of ±100 ppm/°C, an inductance of 14 nH, and a maximum continuous current of 100A. The resistor also boasts features such as flame proofing, moisture resistance, and pulse withstanding capabilities, further enhancing its reliability in critical applications. The SOT-227-4 package ensures efficient heat dissipation when properly mounted to a suitable heatsink.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the PF2272-0R1J1 resistor is 0.1 Ohms.
The PF2272-0R1J1 resistor has a power rating of 200 Watts when used with a heatsink.
The operating temperature range for the PF2272-0R1J1 resistor is -55°C to 155°C.
The tolerance of the PF2272-0R1J1 resistor is ±5%.
The temperature coefficient of the PF2272-0R1J1 resistor is ±100 ppm/°C.
The PF2272-0R1J1 resistor is in a SOT-227-4 package.
