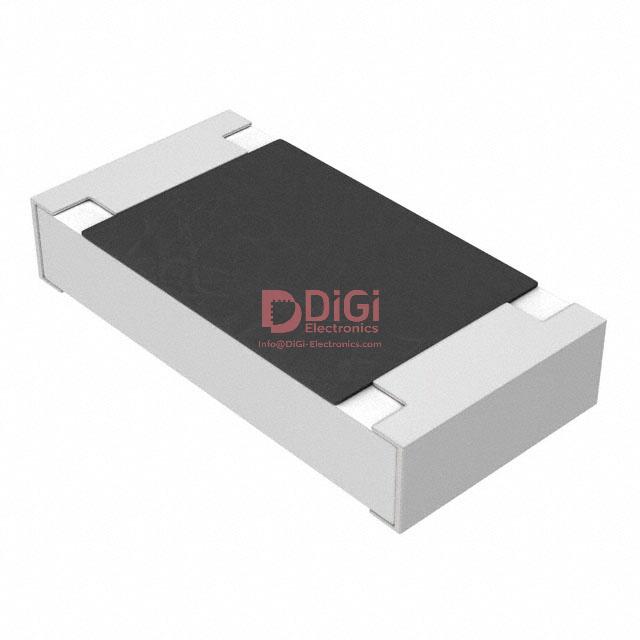

PF1206FRF070R03L The Yageo PF1206FRF070R03L is a surface mount chip resistor with a resistance of 30 mOhm and a tolerance of ±1%. It is designed for current sensing applications.
Mfr Part #:

PF1206FRF070R03L

Available from 1 distributors
Mfr Name: Yageo
Yageo
The Yageo PF1206FRF070R03L is a surface mount chip resistor with a resistance of 30 mOhm and a tolerance of ±1%. It is designed for current sensing applications.
✓ Total Stock: 15,550 pcs
$ Price Range: $0.02

PF1206FRF070R03L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
15,550 pcs
On Request
15550 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PF1206FRF070R03L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

PF1206FRF070R03L Description

Short technical summary and product information.

This Yageo PF1206FRF070R03L is a surface mount chip resistor from the PR/PF/PH series. It offers a resistance value of 30 mOhm with a tight tolerance of ±1%. The component is rated for 0.25W (1/4W) of power and has a temperature coefficient of ±100ppm/°C.



Designed for current sensing applications, this resistor features a metal foil composition and operates within a temperature range of -55°C to 155°C. Its package size is 1206 (3216 Metric), with dimensions of 3.20mm in length and 1.60mm in width. The component has 2 terminations and is moisture resistant.



The Yageo PF1206FRF070R03L is RoHS3 compliant and Halogen-free, making it suitable for environmentally conscious designs. Its robust construction ensures high component and equipment reliability.

PF1206FRF070R03L Quick Information

Product Type: Chip Resistor - Surface Mount
Series: PR/PF/PH
Canonical Name: Yageo PF1206FRF070R03L Chip Resistor - Surface Mount
Subcategory: Surface Mount

PF1206FRF070R03L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free

PF1206FRF070R03L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

PF1206FRF070R03L Features

  • 30 mOhm resistance with ±1% tolerance.
  • 0.25W power rating in a 1206 package.
  • ±100ppm/°C temperature coefficient.
  • Designed for current sensing applications.
  • RoHS3 compliant and Halogen-free.

PF1206FRF070R03L Applications

  • Ideal for power management applications.
  • Used for current detection in power supplies.
  • Suitable for DC-DC converters.
  • Applicable in battery pack designs.
  • Useful in consumer electronics.

PF1206FRF070R03L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the PF1206FRF070R03L?

The resistance value is 30 mOhm.

What is the tolerance of the PF1206FRF070R03L chip resistor?

The tolerance is ±1%.

What is the power rating of the PF1206FRF070R03L?

The power rating is 0.25W (1/4W).

What is the temperature coefficient of the PF1206FRF070R03L?

The temperature coefficient is ±100ppm/°C.

What is the package size of the PF1206FRF070R03L?

The package size is 1206 (3216 Metric).

What are the operating temperature limits for the PF1206FRF070R03L?

The operating temperature range is -55°C to 155°C.
