| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
378 pcs
|
378 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Saturation | |
| DC Resistance | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Self Resonant Frequency | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type |

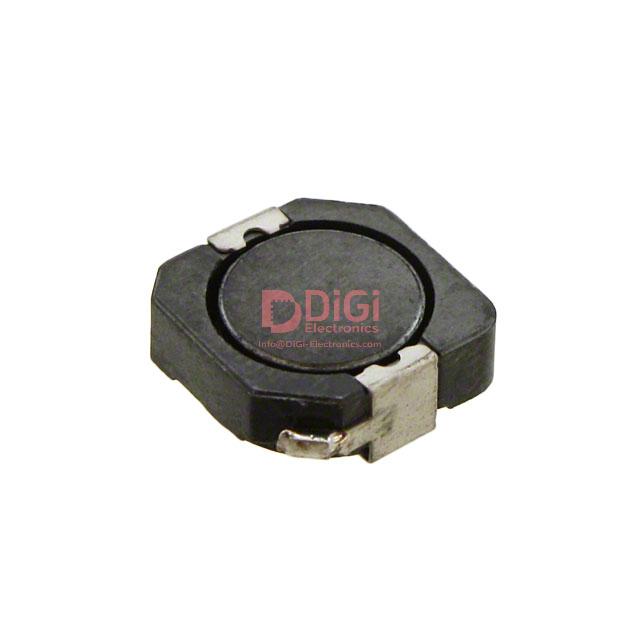

The Pulse Electronics PF0560.223NLT is a fixed inductor from the PF0560NL series. This wirewound inductor features a shielded construction and a surface mount package.
Key electrical specifications include an inductance of 22 µH with a tolerance of ±30% and a current rating of 2.5 A. It has a low DC resistance of 73mOhm maximum and a saturation current of 2.9A. The self-resonant frequency is 17MHz.
Designed for operation in temperatures ranging from -40°C to 125°C, this inductor is suitable for various electronic applications. Its surface mount design facilitates integration into compact circuit boards.
This component is classified as a fixed inductor and is manufactured by Pulse Electronics. It is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 µH.
The current rating is 2.5 A.
The maximum DC Resistance is 73mOhm.
The operating temperature range is -40°C to 125°C.
It is a surface mount component.
