| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination | |
| Termination Style | |
| Voltage Rating |

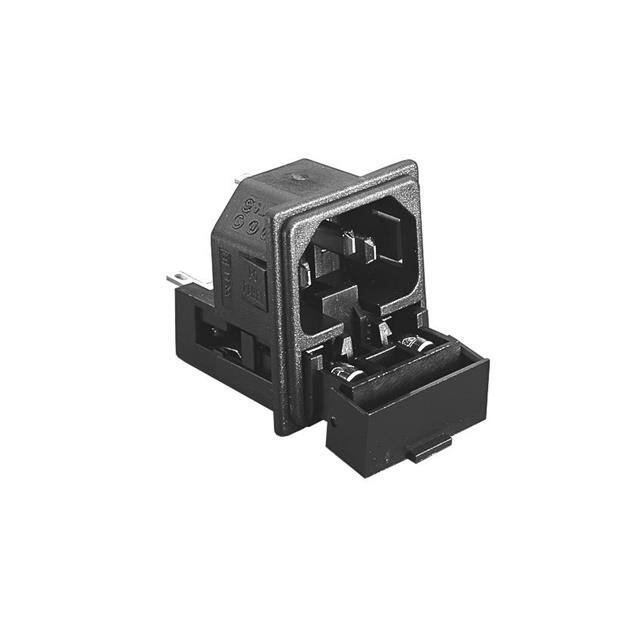

The PF0033/15/63 is a power entry module from Bulgin Components, designed as an IEC 320-C14 receptacle with male blades. It is rated for 10A at 250VAC and is unfiltered for commercial applications. The module features a panel mount, snap-in installation with a rectangular cutout of 27.30mm x 31.12mm and requires a panel thickness of 0.059 inches (1.50 mm).
Termination is via quick connect tabs of 0.250 inches (6.3mm). The module includes a twin fused drawer that accommodates two fuses (fuses not included). The housing is made of material with UL94 V-0 flammability rating, and the component is approved by CSA and UL.
This power entry module is suitable for a variety of equipment requiring a standard IEC inlet with integrated fuse protection. The snap-in mounting allows for quick assembly without additional hardware. The compact design minimizes panel space while providing reliable power entry and fuse accommodation.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.69 | $10.69 |
| 10+ | $9.09 | $9.09 |
| 25+ | $8.52 | $8.52 |
| 50+ | $8.11 | $8.11 |
| 200+ | $7.35 | $7.35 |
| 400+ | $7.00 | $7.00 |
| 600+ | $6.81 | $6.81 |
| 1,000+ | $6.57 | $6.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 3 positions.
The current rating is 10 A.
The voltage rating is 250 VAC.
It uses panel mount, snap-in mounting.
Yes, it includes a twin fused drawer, but fuses are not included.
Termination is quick connect - 0.250" (6.3mm).
It is approved by CSA and UL.
