| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Termination | |
| Termination Style | |
| Voltage Rating |

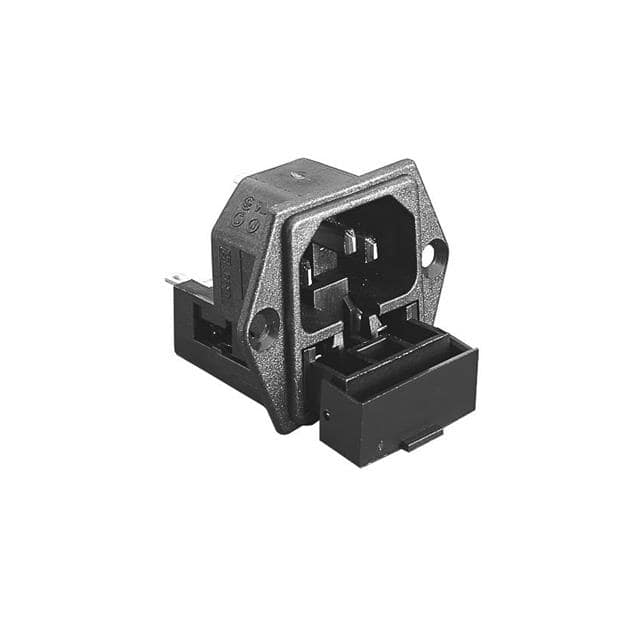

The PF0030/63 is a panel mount power entry module from Bulgin Components, featuring an IEC 320-C14 inlet receptacle with male blades. It is designed for commercial unfiltered applications and includes a twin fused drawer (fuses not included). The module is rated for 10A at 250VAC and terminates via quick connect 0.250" (6.3mm) tabs.
Mechanically, the module mounts to a panel using a flange, requiring a rectangular cutout of 27.30mm x 31.12mm. The housing is made of nylon with a UL94 V-0 flammability rating, and the contacts are clean brass. The module accommodates a fuse drawer for twin fuses, providing overcurrent protection in a compact form factor.
Electrical specifications include a contact resistance of less than 10mΩ, insulation resistance greater than 10³ MΩ, and AC breakdown voltage of 4.5kV minimum between contacts and 4kV minimum between contacts and accessible parts. The operating temperature range is -40°C to +70°C. The module carries CSA and UL approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.63 | $10.63 |
| 10+ | $9.04 | $9.04 |
| 25+ | $8.47 | $8.47 |
| 50+ | $8.07 | $8.07 |
| 200+ | $7.31 | $7.31 |
| 400+ | $6.97 | $6.97 |
| 600+ | $6.77 | $6.77 |
| 1,000+ | $6.53 | $6.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PF0030/63 is rated for 10A.
The voltage rating is 250VAC.
It uses panel mount with flange fixing.
It accommodates a fuse but does not include one. A twin fused drawer is included.
The operating temperature range is -40°C to +70°C.
It carries CSA and UL approvals.
