| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination | |
| Voltage Rating |

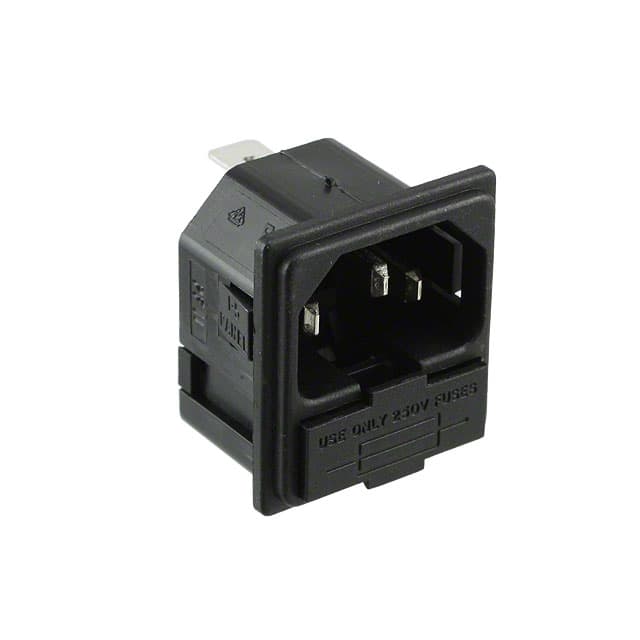

The PF0011/15/63 from Bulgin Components is an IEC 320-C14 power entry module designed for panel mount snap-in installation. It features a receptacle with male blades rated at 10A and 250VAC, suitable for commercial unfiltered applications. The module includes a fuse drawer that accommodates a fuse (not included) for overcurrent protection. Termination is via quick connect tabs measuring 0.250 inches (6.3mm).
The panel cutout is rectangular at 27.30mm x 31.12mm, accepting a panel thickness of 1.50mm (0.059 inches). The housing is made of material with UL94 V-0 flammability rating, ensuring safety in equipment. Operating temperature ranges from -40°C to +70°C, making it suitable for a variety of environments.
This power entry module carries approvals from CSA, ENEC, UL, and VDE, confirming compliance with international standards. It is RoHS compliant as verified by the datasheet. The snap-in mounting provides quick assembly without additional hardware, ideal for high-volume production.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.69 | $10.69 |
| 10+ | $9.09 | $9.09 |
| 25+ | $8.52 | $8.52 |
| 50+ | $8.11 | $8.11 |
| 200+ | $7.35 | $7.35 |
| 400+ | $7.00 | $7.00 |
| 600+ | $6.81 | $6.81 |
| 1,000+ | $6.57 | $6.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A.
250VAC.
Panel mount, snap-in.
Yes, a fuse drawer is included but the fuse is not supplied.
-40°C to +70°C.
CSA, ENEC, UL, VDE.
