| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Termination | |
| Voltage Rating |

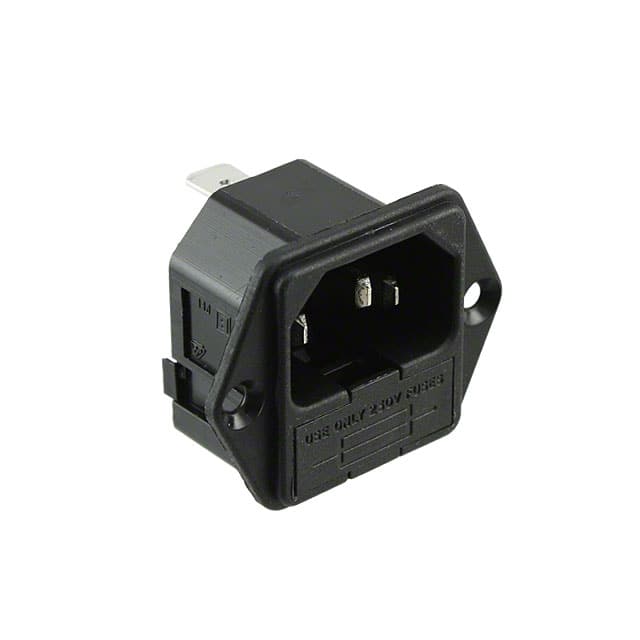

The Bulgin Components PF0001/63 is a panel mount IEC 320-C14 power entry module designed for commercial applications requiring a reliable mains power interface. This unfiltered module is rated for 10A at 250VAC and features a flange mounting style for secure panel installation.
The module accommodates a standard 3-position (Line, Neutral, Ground) connection with quick connect terminals sized at 0.250" (6.3mm). It includes an integrated fuse drawer for accommodating a fuse (fuse not included), providing overcurrent protection capability directly at the power entry point.
Constructed with materials meeting UL94 V-0 flammability rating, the PF0001/63 is suitable for a wide range of equipment. It carries multiple international safety approvals including CSA, ENEC, UL, and VDE, ensuring compliance with global standards. The operating temperature range spans from -40°C to +70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.27 | $7.27 |
| 10+ | $6.18 | $6.18 |
| 25+ | $5.79 | $5.79 |
| 50+ | $5.52 | $5.52 |
| 200+ | $5.00 | $5.00 |
| 400+ | $4.76 | $4.76 |
| 600+ | $4.63 | $4.63 |
| 1,000+ | $4.46 | $4.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel Mount, Flange.
10 A.
250 VAC.
3 Positions.
Yes, it accommodates a fuse (fuse not included) and includes a fuse drawer.
Quick Connect - 0.250" (6.3mm).
CSA, ENEC, UL, VDE.
