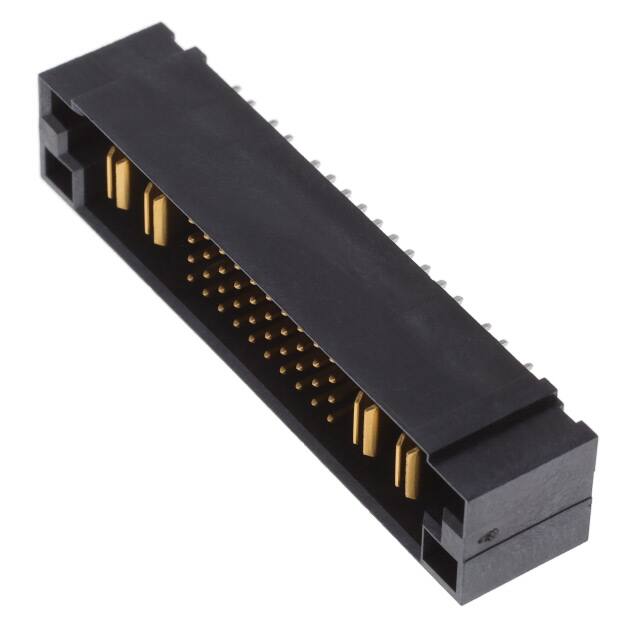

PETC-02-40-02-01-L-VT Samtec PETC-02-40-02-01-L-VT is a 44 position (40 signal + 4 power) through hole shrouded header with friction lock, featuring 0.100" signal pitch and 0.250" power pitch. It is rated for 50A max on power blades and 4.8A max on signal pins, with voltage rating up to 450VAC/636VDC.
Mfr Part #:

PETC-02-40-02-01-L-VT

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec PETC-02-40-02-01-L-VT is a 44 position (40 signal + 4 power) through hole shrouded header with friction lock, featuring 0.100" signal pitch and 0.250" power pitch. It is rated for 50A max on power blades and 4.8A max on signal pins, with voltage rating up to 450VAC/636VDC.
✓ Total Stock: 10 pcs
$ Price Range: $10.94 - $16.53

PETC-02-40-02-01-L-VT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PETC-02-40-02-01-L-VT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Type
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

PETC-02-40-02-01-L-VT Description

Short technical summary and product information.

The Samtec PETC-02-40-02-01-L-VT is a 44-position (40 signal + 4 power) PowerStrip/40 header designed for board-to-board power and signal interconnections. This vertical through-hole shrouded header features a 4-wall design with friction lock for secure mating. Signal contacts are on 0.100" (2.54 mm) pitch while power blade contacts are on 0.250" (6.35 mm) pitch, enabling high-current power delivery alongside dense signal routing.



Electrical ratings include 50 A maximum per power blade and 4.8 A per signal pin, with a voltage rating of 450 VAC / 636 VDC. The connector is built with copper alloy contacts plated with 0.25 µm tin finish and housed in a black liquid crystal polymer (LCP) insulator. It operates over a temperature range of -55°C to 125°C.



This header is part of Samtec's PowerStrip/40 series, designed to mate with PESC series socket strips. It is suitable for applications requiring mixed power and signal transmission in a single connector, such as industrial control, server, and telecommunications equipment. The component is packaged in trays of 24 units.

PETC-02-40-02-01-L-VT Quick Information

Product Type: Header
Series: PETC
Canonical Name: Samtec PETC-02-40-02-01-L-VT, PowerStrip/40, 44 Position (40 Signal + 4 Power) Header, Through Hole, Vertical, Shrouded, Friction Lock
Subcategory: Power/Signal Combo Header

PETC-02-40-02-01-L-VT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PETC-02-40-02-01-L-VT Estimated Pricing

Qty Low High
1+ $16.53 $16.53
10+ $14.91 $14.91
25+ $13.28 $13.28
50+ $10.94 $10.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

PETC-02-40-02-01-L-VT Features

  • Shrouded 4-wall design with friction lock.
  • 50A power blade current rating.
  • 4.8A signal pin current rating.
  • 0.100" signal pitch, 0.250" power pitch.
  • Through hole solder termination.

PETC-02-40-02-01-L-VT Applications

  • Ideal for board-to-board power distribution.
  • Suitable for high-current power and signal combo.
  • Used in industrial and server applications.
  • Compatible with PESC series socket strips.

PETC-02-40-02-01-L-VT FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the PETC-02-40-02-01-L-VT have?

44 positions: 40 signal pins and 4 power blades.

What is the pitch of the signal and power contacts?

Signal contacts have 0.100" (2.54 mm) pitch, power contacts have 0.250" (6.35 mm) pitch.

What is the current rating of the power blades and signal pins?

Power blades: 50 A max; signal pins: 4.8 A max.

What is the voltage rating of this connector?

450 VAC / 636 VDC max.

What is the mounting type of this header?

Through hole, solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Copper alloy contacts with tin finish (0.25 µm).
