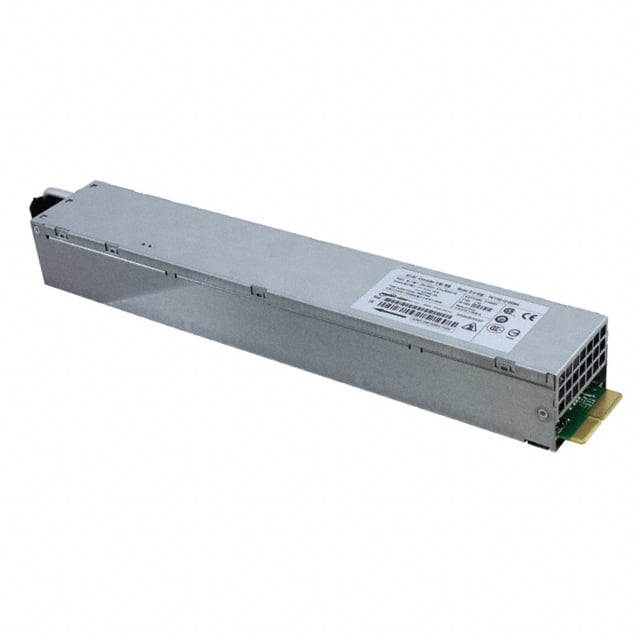

The Bel Power Solutions PET750-12-050NA is a 750W, 1U form factor AC-DC power supply module designed for high-performance servers, routers, and network switches. It features an Active Power Factor Correction (PFC) and achieves 80 PLUS Platinum certified efficiency.
This front-end power supply operates with a wide input voltage range of 90-264 VAC, converting AC mains power to a main output of 12VDC at 62A. It also includes an always-on 15W standby output of 5V/3A. The module supports hot-plug capability and parallel operation with active current sharing, making it suitable for redundant power systems.
Designed for reliability and high density, the PET750-12-050NA incorporates DC-DC digital controls and resonance-soft-switching technology. It offers protection against over-temperature, output over-voltage, and over-current conditions. Communication and monitoring are facilitated via a Power Management Bus (PMBus) interface, allowing control, programming, and monitoring of voltage, current, power, and internal temperatures. The unit is fan-cooled with speed adjusted based on power demand.
With dimensions of 300 x 50.5 x 40 mm (11.81 x 1.99 x 1.57 in), it is suitable for rack-mount applications. The PET750-12-050NA meets international safety standards and carries the CE-Mark for the European Low Voltage Directive (LVD).
90 to 264 VAC.
12 VDC.
62 A.
750W.
80 PLUS Platinum.
0°C to 50°C.
Rack mount, 1U form factor.
