| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

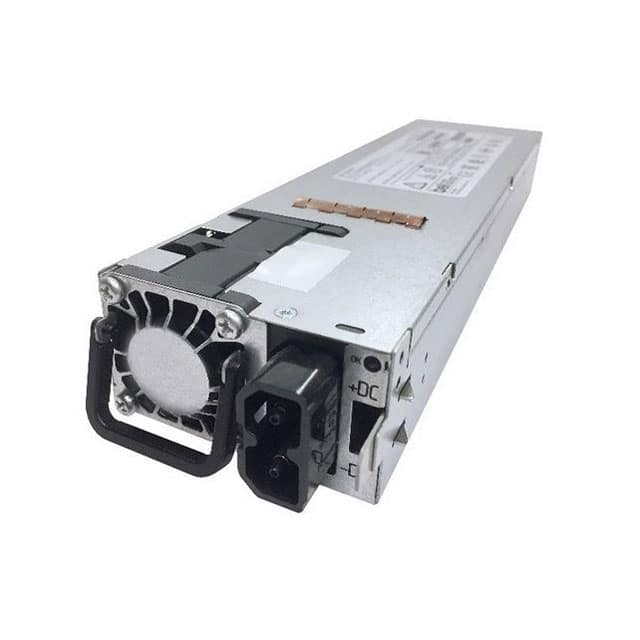

The Bel Power Solutions PET1600-12-074xD is a 1600 Watt DC-DC power supply designed for high-performance servers, routers, and network switches. It converts a wide input voltage range of -40 to -72 VDC into an isolated main output of +12 VDC.
This power supply utilizes a full digital control architecture for enhanced efficiency, control, and functionality, achieving a best-in-class "Platinum" equivalent efficiency of 93%. It features an always-on 12 V / 3 A / 36 W standby output, hot-plug capability, and parallel operation with active current sharing for increased reliability.
The PET1600-12-074xD has a high-density design with dimensions of 265 x 73.5 x 40.0 mm (10.43 x 2.89 x 1.57 in). It communicates via the Power Management Bus protocol for control, programming, and monitoring, and includes a status LED with fault signaling.
Applications include networking switches, servers, and routers. The unit meets international safety standards and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is -40 to -72 VDC.
The main output voltage is +12 VDC.
The power rating is 1600 Watts.
The operating temperature range is -5°C to 55°C with derating.
The dimensions are 265 x 73.5 x 40.0 mm (10.43 x 2.89 x 1.57 in).
It meets safety standard 62368.
