| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cooling Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

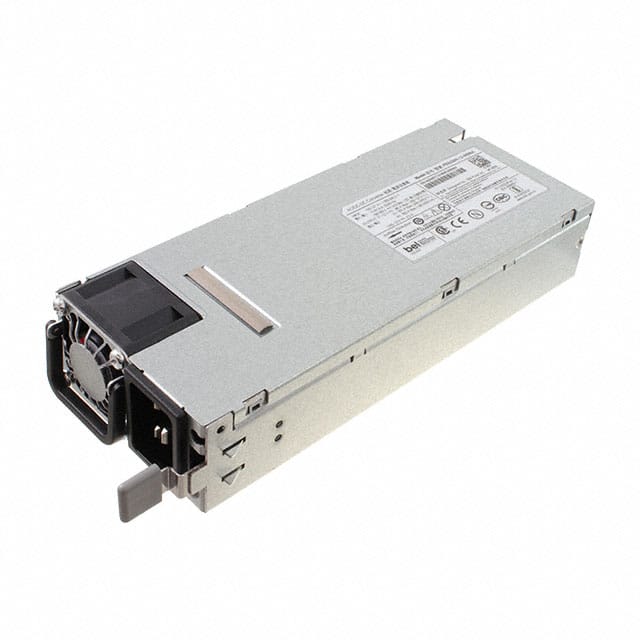

The Bel Power Solutions PES2200-12-080NA is a 2200 Watt AC to DC power supply designed for high-performance servers, routers, and network switches. It features a power-factor-corrected (PFC) input and provides a main output of +12 VDC.
This power supply utilizes full digital control architecture for enhanced efficiency, control, and functionality. It meets 80 Plus Platinum efficiency requirements and operates with auto-selected input voltage ranges of 90-140 VAC and 180-264 VAC. The continuous output power capability is 2200W, with an always-on 12 VSB standby output.
Designed for reliability, the PES2200-12-080NA is hot-plug capable and supports parallel operation with active current sharing. Its high power density design and small form factor (195 x 80 x 40 mm) make it suitable for integration into various systems. It also includes a Power Management Bus communication interface for control, programming, and monitoring, along with a status LED for fault signaling.
The unit is fan-cooled and meets international safety standards, displaying the CE-Mark for the European Low Voltage Directive (LVD). Its applications include ITE (Commercial) environments.
The output voltage is 12 VDC.
The power rating is 2200 W (2196 W nominal).
The efficiency is 95%.
The operating temperature range is 0°C to 55°C.
It supports 90-140 VAC and 180-264 VAC, auto-selected.
Dimensions are 195 x 80 x 40 mm (7.68 x 3.15 x 1.57 in).
It uses rack mount mounting.
