| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

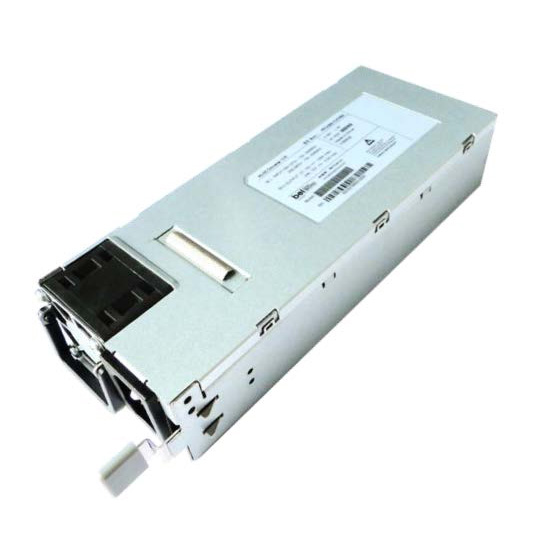

The Bel Power Solutions PES1600-12-080NA is a front-end AC to DC converter designed for ITE (Commercial) applications. It delivers 1596 watts of power with a stable 12VDC output.
Key electrical specifications include a high efficiency of 94% and a current rating of 133A. The unit accepts a wide input voltage range of 90-264 VAC and 180-300 VDC. It operates reliably within an ambient temperature range of 0°C to 55°C.
This converter features a rack mountable design for easy integration into standard equipment racks. Its dimensions are 195.0mm in length, 80.0mm in width, and 39.0mm in height. The PES1600-12-080NA is designed with features such as hot-swappable capability and load sharing, making it suitable for high-performance and reliability server, router, and network switch applications.
The AC input voltage range is 90 to 264 VAC, and the HVDC input voltage range is 180 to 300 VDC.
The operating temperature range is 0°C to 55°C.
The converter is designed for rack mounting with dimensions of 195.0mm x 80.0mm x 39.0mm.
The output is 12 VDC at 133 A, providing 1596 W of power.
Typical efficiency is 94%.
It has a single output.
It supports hot swappable and load sharing features.
