| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
645 pcs
|
645 pcs | On Request | 1 | On Request | On Request | 1146 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Capacitance | |
| ESD Protection | |
| Filter Order | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resistance | |
| Technology | |
| Type | |
| Values | |
| Width |

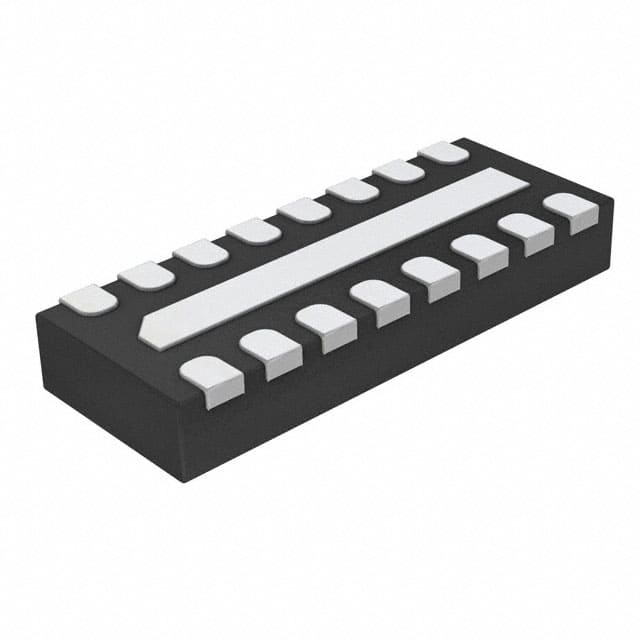

The NXP Semiconductors PEMI8QFN/RG,132 is an 8-channel RC low pass filter designed for filtering undesired RF signals and providing ElectroStatic Discharge (ESD) protection to downstream components. It incorporates a -type RC filter network with a resistance of 100 Ohms and a capacitance of 11pF per channel.
This filter is fabricated using monolithic silicon technology and comes in a compact 16-XFDFN exposed pad package suitable for surface mounting. The device offers ESD protection up to ±25 kV contact discharge according to IEC 61000-4-2. Its applications include filtering and ESD protection for LAN, PCS, and WAN systems.
The PEMI8QFN/RG,132 operates within a temperature range of -40°C to 85°C. It is RoHS compliant, Pb-free, and halogen-free, making it suitable for environmentally conscious designs. The filter provides an attenuation of 15dB from 800MHz to 3GHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The PEMI8QFN/RG,132 is supplied in a 16-XFDFN Exposed Pad package.
Yes, the PEMI8QFN/RG,132 incorporates diodes for ESD protection up to ±25 kV contact discharge.
Each channel has a resistance of 100 Ohms and a capacitance of 11pF.
The filter provides 15dB attenuation at frequencies from 800MHz to 3GHz.
