| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
97 pcs
|
97 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Input Voltage Range (Minimum/Maximum) | |
| Isolation Voltage | |
| Lead Style | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Minimum/Maximum @ per output) | |
| Output Voltage | |
| Power (Watts) | |
| Ripple and Noise | |
| Standard Number | |
| Surge Voltage | |
| Switching Frequency | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Accuracy | |
| Voltage Balance | |
| Width |

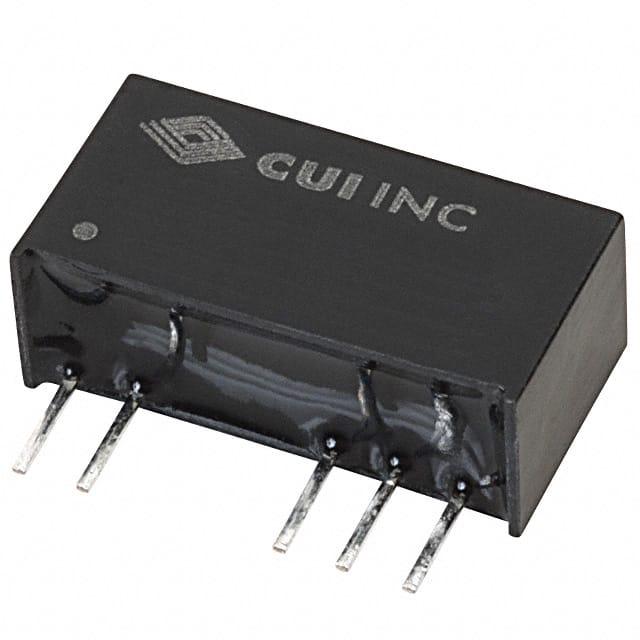

The CUI Inc. PEM2-S24-D12-S is a 2-watt isolated DC-DC converter module designed for commercial ITE applications. It provides dual regulated outputs of ±12Vdc with a maximum output current of 83.3 mA per output.
Operating from a nominal 24Vdc input (21.6-26.4Vdc range), the converter achieves a typical efficiency of 84%. It offers 3000Vdc input-to-output isolation and includes short circuit protection. Output ripple and noise are limited to 75 mVp-p maximum.
Housed in a 7-SIP module with 5 leads, the converter measures 19.6 x 7.0 x 10.0 mm and is through-hole mountable. It operates over a wide temperature range of -40°C to +105°C and has a temperature coefficient of ±0.03%/°C.
The module is designed to meet EN/BS EN 62368 and carries approvals from CB Scheme, EN, IEC, and UL. RoHS and REACH compliance are indicated but unverified.
The nominal input voltage is 24Vdc with a range of 21.6 to 26.4Vdc.
It is a 7-SIP module with 5 leads, through-hole mounting.
-40°C to +105°C.
It is indicated as RoHS3 compliant, but this is unverified.
Dual ±12Vdc outputs.
3000Vdc input to output.
84% typical.
