Mfr Part #:

PEC36DGBN

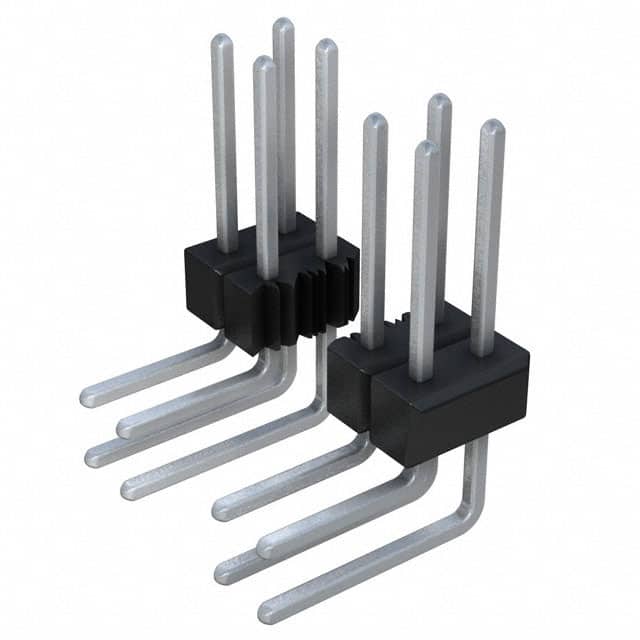

Name: PEC36DGBN
Brand: Sullins Connector Solutions
SKU: PEC36DGBN

Description:

CONN HEADER R/A 72POS 2.54MM

Stock on Request

PEC36DGBN Description

Short technical summary and product information.

CONN HEADER R/A 72POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

PEC36DGAN

Sullins Connector Solutions

CONN HEADER R/A 72POS 2.54MM

Category	Headers, Male Pins
Manufacturer Name	Sullins Connector Solutions
Connector Type	Header, Breakaway
Contact Finish	Tin
Contact Finish Thickness	100.0碌in (2.54碌m)
Contact Length	0.318" (8.08mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.240" (6.10mm)
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
