| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

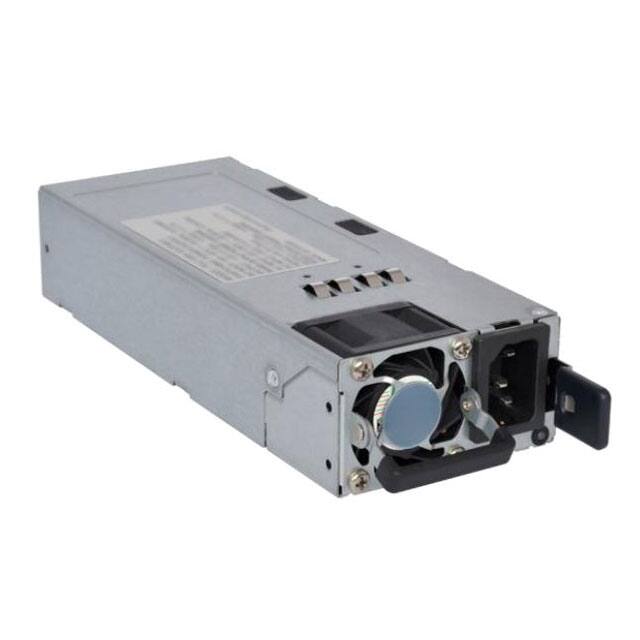

The Bel Power Solutions PEC1600-12-074NA is a high-performance AC to DC power supply module designed for demanding applications. It delivers up to 1600 Watts of power with a primary 12VDC output and an additional 12VDC standby output.
This module utilizes a full digital control architecture for enhanced efficiency, control, and functionality, achieving 80 PLUS Platinum efficiency ratings. It operates with a wide input voltage range of 90-264 VAC or 180-300 VDC, making it suitable for global deployment. The power supply meets international safety standards, including UL/CSA 62368-1 and EN/IEC 62368-1, and displays the CE-Mark.
Designed in the Intel Standard CRPS form factor, the PEC1600-12-074xA measures 185 x 73.5 x 40 mm. It supports N+1 redundancy, cold redundancy, and internal ORing for increased system reliability. Additional features include a black box recorder, bootloader, and support for power management bus communication protocols. The cooling is managed by a fan with selectable rotation direction.
This power supply is ideal for applications such as networking switches, servers, routers, and telecommunications equipment that require high power density and reliable operation.
The main output voltage is 12 VDC.
The standby output voltage is 12 VDC.
The output power is up to 1600 W.
The input voltage range for AC operation is 90 to 264 VAC.
The operating temperature range is 0°C to 50°C.
It meets UL/CSA 62368-1 and EN/IEC 62368-1 safety standards.
Yes, it is RoHS3 Compliant.
