| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
259 pcs
|
259 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Built in Switch | |
| Detent | |
| Dielectric Withstanding Voltage | |
| Encoder Type | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature Range | |
| Orientation | |
| Output | |
| Output Type | |
| Pulses per Revolution | |
| Rotational Life (Cycles Min) | |
| Termination Style |

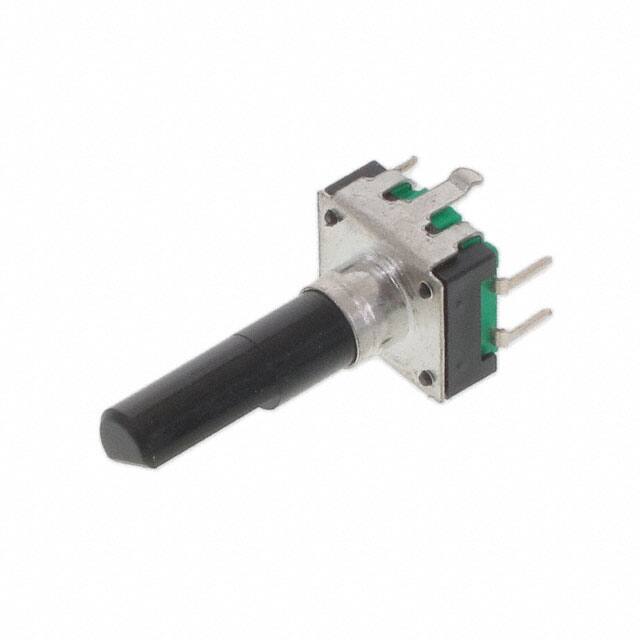

The Bourns PEC12R-4230F-S0024 is a mechanical rotary encoder designed for reliable performance. It offers a 2-bit quadrature code output and 24 pulses per revolution, making it suitable for precise position sensing.
This encoder features a compact design with a 6mm diameter flatted end actuator and a vertical mounting orientation for PCB through-hole applications. It includes a momentary push switch option, adding functionality for user input.
With a rotational life of 30,000 cycles minimum and a switch life of 20,000 cycles minimum, the PEC12R-4230F-S0024 is built for durability. It operates within a temperature range of -30 °C to +70 °C and has an IP40 rating, providing protection against dust and solid objects.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output is a 2-bit quadrature code.
The contact rating is 10 mA @ 5 VDC.
The rotational life is a minimum of 30,000 cycles.
The operating temperature range is -30 °C to +70 °C.
Yes, it has a momentary push switch option.
The IP rating is IP 40.
It is designed for PCB mounting using through-hole termination.
