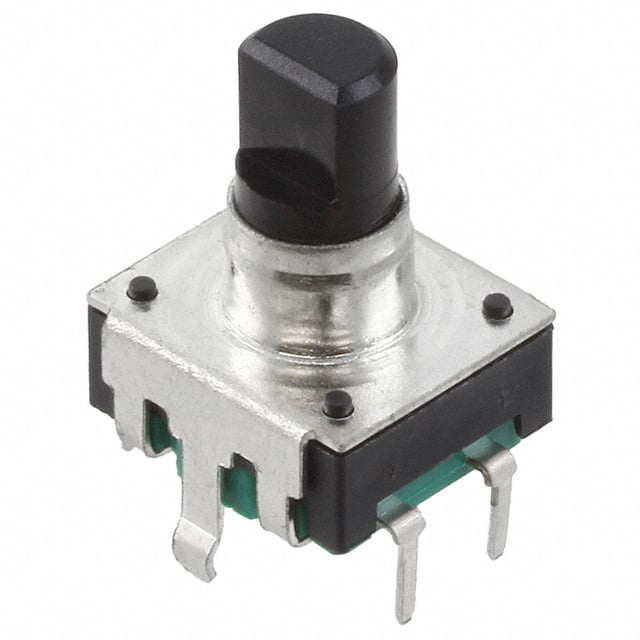

The Bourns PEC12R-4220F-S0024 is a 12mm incremental encoder offering a compact design with high reliability. It provides a 2-bit quadrature code output and includes a momentary push switch option.
This encoder operates with a contact rating of 10 mA at 5 VDC and has an insulation resistance of 10 megohms at 250 VDC. It features a mechanical angle of 360° continuous rotation and a detent torque range of 30 to 90 gf-cm. The rotational life is rated for a minimum of 30,000 cycles, and the switch life is a minimum of 20,000 cycles.
Environmental specifications include an operating temperature range of -30 °C to +70 °C and a storage temperature range of -40 °C to +85 °C. It has an IP 40 rating and meets MIL-STD-202, Method 103B for humidity. The encoder is designed for PCB mounting with a vertical orientation and PC pin termination.
Key electrical characteristics include 24 pulses per revolution and a maximum operating RPM of 100. The built-in switch adds functionality for user input. This encoder is suitable for applications requiring precise rotational feedback and user interaction.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output type is 2-bit quadrature code.
The contact rating is 10 mA at 5 VDC.
The operating temperature range is -30 °C to +70 °C.
The rotational life is a minimum of 30,000 cycles.
Yes, it has a built-in switch.
The IP rating is IP 40.
It provides 24 pulses per revolution.
