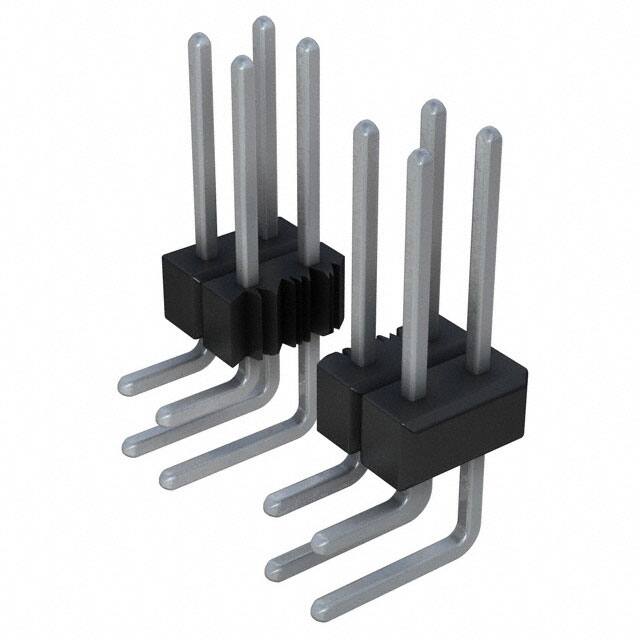

PEC06DGAN This is a 12-position, 2-row, 2.54mm pitch male header with right-angle through-hole mounting. It features tin-plated phosphor bronze contacts and a black PBT insulator.
Mfr Part #:

PEC06DGAN

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
This is a 12-position, 2-row, 2.54mm pitch male header with right-angle through-hole mounting. It features tin-plated phosphor bronze contacts and a black PBT insulator.
✓ Total Stock: 55 pcs

PEC06DGAN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PEC06DGAN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Storage Temperature
Style
Termination
View Similar Products (0)

PEC06DGAN Description

Short technical summary and product information.

The PEC06DGAN is a 12-position, 2-row male header from Sullins Connector Solutions, designed for board-to-board or cable connections. It features a 2.54mm pitch and 2.54mm row spacing, with a right-angle through-hole mounting style for solder termination. The contacts are made of phosphor bronze with a tin finish (100µin thickness), and the insulator is black polybutylene terephthalate (PBT) rated UL94 V-0. This unshrouded header has a push-pull fastening type and is rated for 3A current with an operating temperature range of -65°C to 125°C. It is suitable for a variety of general-purpose interconnection applications.

PEC06DGAN Quick Information

Product Type: Header, Male Pins
Series: PEC
Canonical Name: Header, Breakaway, Male Pins, 12 Positions, 2 Rows, 2.54mm Pitch, Through Hole, Right Angle, Solder, Tin Contact Finish
Subcategory: Male Pins

PEC06DGAN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PEC06DGAN Features

  • 12 positions in 2 rows with 2.54mm pitch.
  • Right-angle through-hole mounting for solder termination.
  • Tin-plated phosphor bronze contacts for reliable conductivity.
  • Rated for 3A current and -65°C to 125°C.
  • UL94 V-0 rated PBT insulation.

PEC06DGAN Applications

  • Used in board-to-board interconnection.
  • Suitable for cable-to-board connections.
  • Ideal for general-purpose electronic assemblies.

PEC06DGAN FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the PEC06DGAN have?

This header has 12 positions, all loaded.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the current rating?

It is rated for 3A.

What is the mounting type?

Through Hole, Right Angle with solder termination.

What is the operating temperature range?

-65°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with tin finish, 100µin thickness.

Is this header shrouded?

No, it is unshrouded.
