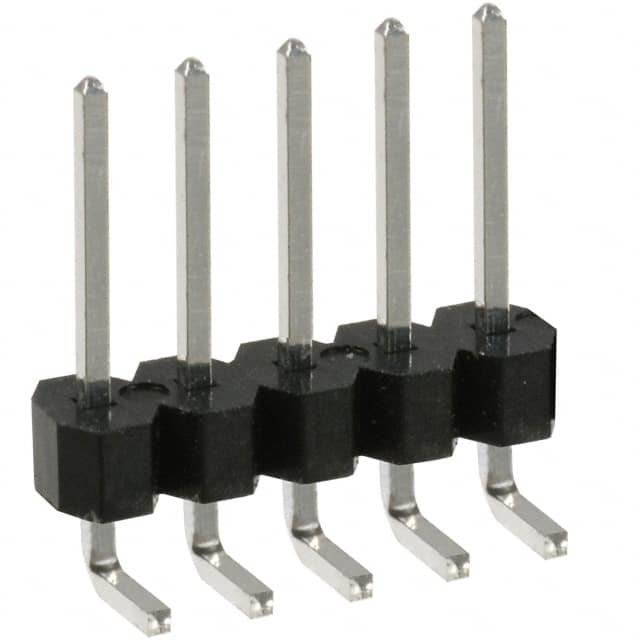

PEC05SGAN PEC05SGAN is a 5-position, single row, 2.54mm pitch male pin header from Sullins Connector Solutions. It features a right angle through hole mounting with tin-plated phosphor bronze contacts.
Mfr Part #:

PEC05SGAN

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
PEC05SGAN is a 5-position, single row, 2.54mm pitch male pin header from Sullins Connector Solutions. It features a right angle through hole mounting with tin-plated phosphor bronze contacts.
✓ Total Stock: 61 pcs
$ Price Range: $0.47 - $0.90

PEC05SGAN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
61 pcs
On Request
61 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PEC05SGAN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
View Similar Products (0)

PEC05SGAN Description

Short technical summary and product information.

The PEC05SGAN is a 5-position, single row male pin header with a 2.54mm (0.100") pitch, designed for board-to-board or cable applications. This unshrouded header features a right angle through hole mounting style, making it suitable for compact PCB layouts where space is constrained. The contacts are made of phosphor bronze with a tin finish (100µin thickness), ensuring reliable electrical connections. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The header has a current rating of 3A and an operating temperature range of -65°C to 125°C. The contact length is 8.08mm (0.318") with a square pin shape. The fastening type is push-pull, and the termination is solder. This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in various electronic assemblies requiring a reliable right-angle interconnect.

PEC05SGAN Quick Information

Product Type: Header, Male Pins
Canonical Name: PEC05SGAN - 5 Position 2.54mm Pitch Male Pin Header, Unshrouded, Right Angle
Subcategory: Male Pin Headers

PEC05SGAN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PEC05SGAN Estimated Pricing

Qty Low High
1+ $0.90 $0.90
10+ $0.77 $0.77
100+ $0.65 $0.65
500+ $0.58 $0.58
1,000+ $0.55 $0.55
5,000+ $0.50 $0.50
10,000+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

PEC05SGAN Features

  • 5 positions with 2.54mm pitch spacing.
  • Right angle through hole mounting.
  • Tin-plated phosphor bronze contacts.
  • Rated for 3A continuous current.
  • UL94 V-0 rated PBT insulator.

PEC05SGAN Applications

  • Used in PCB interconnect applications.
  • Ideal for compact right-angle connections.
  • Suitable for board-to-board or cable headers.

PEC05SGAN FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the PEC05SGAN have?

5 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

3A.

What is the mounting type?

Through hole, right angle.

What is the contact finish?

Tin, 100µin (2.54µm).

What is the operating temperature range?

-65°C to 125°C.

Is this header RoHS compliant?

RoHS3 compliant (unverified).
