| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

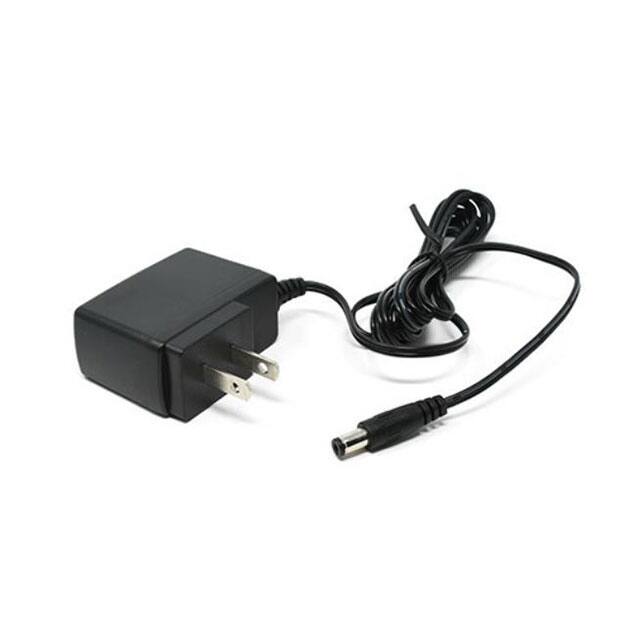

The TT Electronics PEAW12NA-14-B1 is a 12-watt AC/DC wall mount switching power supply designed for ITE (Commercial) applications. It operates with a wide input voltage range of 90-264VAC and features a fixed NEMA 1-15P input connector optimized for North American outlets.
This adapter delivers a stable 24VDC output at 0.5A, providing a total of 12W of continuous power. It meets Efficiency Level VI requirements, ensuring energy efficiency. The unit includes essential protection features such as overvoltage, overcurrent, and short circuit protection with auto-recovery or hiccup mode.
With a compact form factor (53.8mm x 40.9mm x 23.9mm), it is suitable for space-constrained designs. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a 1.80m cord. The power supply is certified by CB, CE, cULus, FCC, and TUV, adhering to safety standards like IEC 60950-1 and IEC 62368-1.
24VDC at 0.5A, delivering 12W of power.
The adapter accepts 90-264VAC at 47-63Hz.
0°C to 60°C, with linear derating above 40°C.
53.8mm x 40.9mm x 23.9mm (2.12" x 1.61" x 0.94").
CB, CE, cULus, FCC, and TUV certifications.
No, the adapter has no minimum load requirement.
Overvoltage protection (150% latching), overcurrent protection (150% auto-restart), and short circuit protection (hiccup mode auto-recovery).
