| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

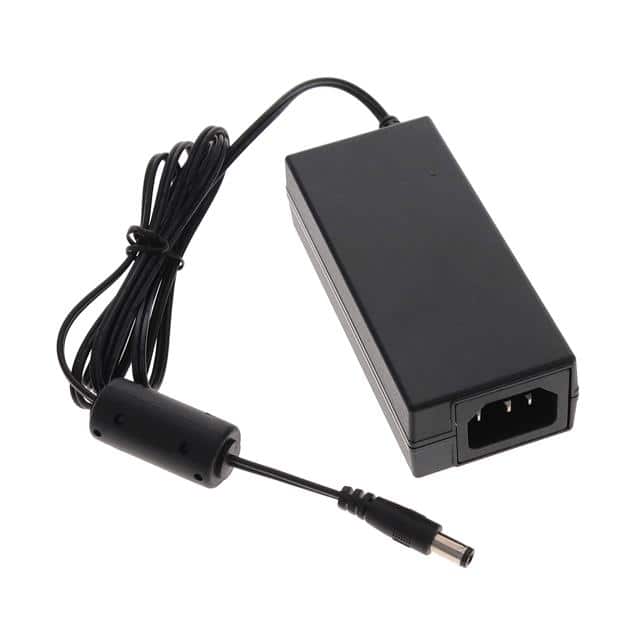

This TT Electronics PEAD50B-18-B2 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a 50W output with a voltage of 48V and a current rating of 1.04A.
The adapter operates within a wide input voltage range of 100-240 VAC and complies with Efficiency Level VI and CoC Tier 2 standards, ensuring low no-load power consumption of 150mW. It features an IEC 320-C14 input connector and a standard barrel plug output with positive center polarization.
With dimensions of 105.0mm x 46.0mm x 28.0mm, this adapter is suitable for various desktop applications. It is approved by multiple agencies including CB, CCC, CE, cULus, PSE, and UKCA, and adheres to the 62368-1 standard. The operating temperature range is from 0°C to 60°C.
The PEAD50B-18-B2 adapter has an output voltage of 48V and a power rating of 50W.
The adapter meets Efficiency Level VI and CoC Tier 2 standards.
The dimensions are 105.0mm in length, 46.0mm in width, and 28.0mm in height.
The operating temperature range is 0°C to 60°C.
It uses an IEC 320-C14 input connector.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
