| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

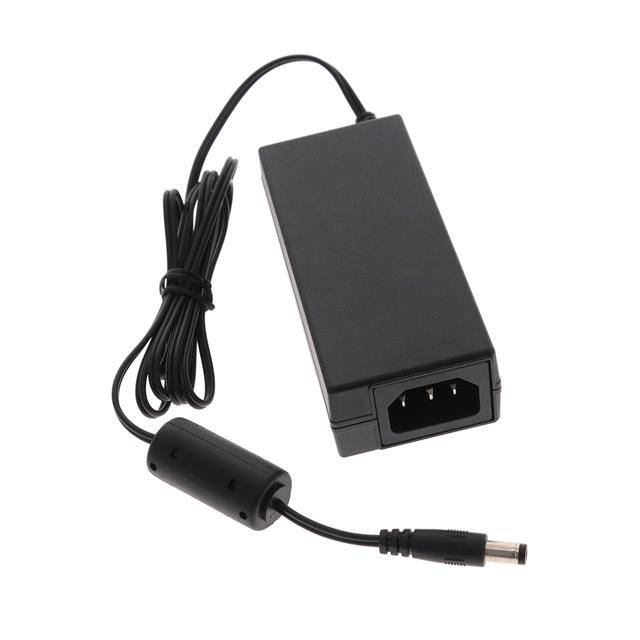

The TT Electronics PEAD50B-14-B2 is a versatile 50W AC/DC desktop power supply designed for ITE (Commercial) applications. It delivers a stable 24VDC output with a maximum current of 2.08A, making it suitable for a wide range of electronic devices.
This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy savings and reduced heat generation. It is equipped with an IEC 320-C14 input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D.) with a positive center pin. The unit operates within a temperature range of 0°C to 60°C and has a low no-load power consumption of 150mW.
Compliance is assured with international approvals including CB, CCC, CE, cULus, PSE, and UKCA, supporting its use in global markets. The adapter's dimensions are 105.0mm x 46.0mm x 28.0mm, and it utilizes a Class I desktop form factor. The input cord is sold separately and has a specified length of 1.50m (59").
The PEAD50B-14-B2 adapter provides an output voltage of 24VDC and a maximum current of 2.08A.
The PEAD50B-14-B2 adapter has a power rating of 50W.
The PEAD50B-14-B2 adapter meets Level VI efficiency standards and CoC Tier 2.
The adapter can operate within a temperature range of 0°C to 60°C.
The adapter uses an IEC 320-C14 input connector.
The adapter measures 105.0mm in length, 46.0mm in width, and 28.0mm in height.
