PE4312C-Z

Mfr Name: pSemi

The pSemi PE4312C-Z is a 6-bit RF Digital Step Attenuator designed for high-performance RF applications. It offers a 31.5 dB attenuation range in 0.5 dB steps across a frequency range of 1 MHz to 4 GHz.

✓ Total Stock: 29,997 pcs

$ Price Range: $0.99

PE4312C-Z Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	28,900 pcs On Request	28900 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	1,097 pcs On Request	1097 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PE4312C-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Attenuators
Manufacturer Name	pSemi
Attenuation Value	31.5dB
Frequency Range	1 MHz–4 GHz
Impedance	50 Ω
Operating Temperature	105 °C

View Similar Products (0)

PE4312C-Z Description

Short technical summary and product information.

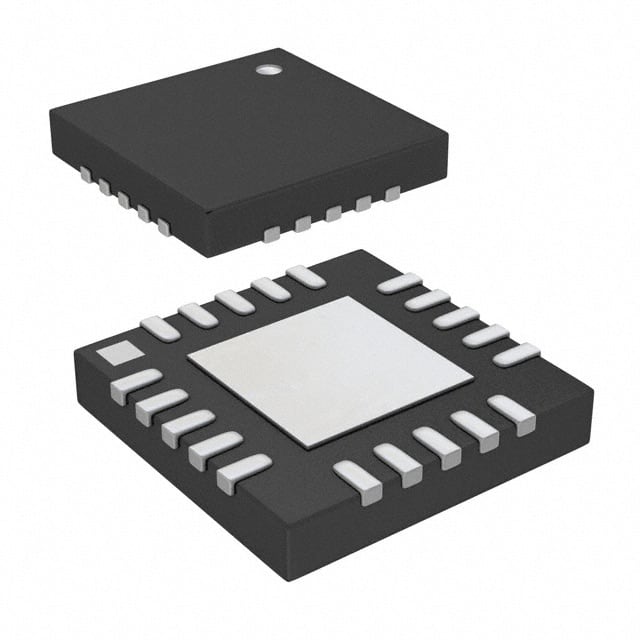

The PE4312C-Z from pSemi is a 6-bit RF Digital Step Attenuator (DSA) utilizing HaRP technology. It is designed for 3G/4G wireless infrastructure and other demanding RF applications. This DSA provides a wide attenuation range of 31.5 dB, adjustable in precise 0.5 dB steps, covering frequencies from 1 MHz up to 4 GHz.

Key electrical specifications include a 50 Ohm impedance, high linearity with a +59 dBm IIP3, and an input 0.1dB compression point of 30 dBm. The device operates over a wide power supply range of 2.3V to 5.5V and is compatible with 1.8V control logic. It features safe attenuation state transitions and unique power-up state selection.

The PE4312C-Z is manufactured on pSemi's UltraCMOS® process. It is supplied in a compact 20-lead, 4x4 mm QFN package, suitable for space-constrained designs. No external blocking capacitors are required if 0 VDC is present on the RF ports, simplifying circuit design. This attenuator is pin-compatible with older models like the PE4302, offering an upgraded performance profile with higher linearity and improved attenuation accuracy.

PE4312C-Z Quick Information

Product Type: RF Digital Step Attenuator

Canonical Name: 6-bit RF Digital Step Attenuator

Subcategory: Digital Step Attenuators

PE4312C-Z Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PE4312C-Z Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE4312C-Z Features

6-bit RF Digital Step Attenuator.
31.5 dB attenuation range in 0.5 dB steps.
Operates from 1 MHz to 4 GHz.
50 Ohm impedance.
20-lead 4x4 mm QFN package.

PE4312C-Z Applications

Suitable for RF signal attenuation in wireless infrastructure.
Used in high-frequency RF testing and measurement.
Ideal for controlling signal levels in communication systems.
Applicable in RF front-end modules for mobile devices.
Employed in RF signal chain calibration and testing.

PE4312C-Z FAQs

7 frequently asked questions generated from this part’s specifications.

What is the attenuation range of the PE4312C-Z?

The PE4312C-Z offers a maximum attenuation range of 31.5 dB.

What is the frequency range for the PE4312C-Z?

The operating frequency range for the PE4312C-Z is from 1 MHz to 4 GHz.

What is the impedance of the PE4312C-Z?

The impedance of the PE4312C-Z is 50 Ohms.

What is the package type for the PE4312C-Z?

The PE4312C-Z is supplied in a 20-lead 4x4 mm QFN package.

What is the maximum operating temperature for the PE4312C-Z?

The maximum operating temperature for the PE4312C-Z is 105 °C.

What is the RoHS status of the PE4312C-Z?

The PE4312C-Z is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the PE4312C-Z?

The Moisture Sensitivity Level (MSL) for the PE4312C-Z is 1 Unlimited.
