Mfr Part #:

PE-68386NLT

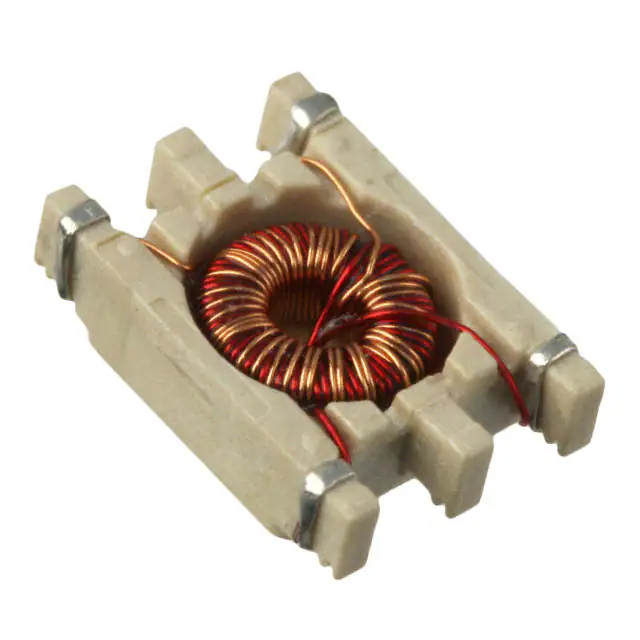

The Pulse Electronics PE-68386NLT is a pulse transformer featuring 785µH inductance and a 1:1 turns ratio. It is designed for surface mount applications.

✓ Total Stock: 14,431 pcs

$ Price Range: $3.00

PE-68386NLT Available from 6 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	6,000 pcs On Request	6000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	5,050 pcs On Request	5050 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Innova Technologies ✓ Non-Authorised Inventory information	1,765 pcs On Request	1765 pcs	On Request	1	On Request	On Request	202011	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	1,574 pcs On Request	1574 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	22 pcs On Request	22 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PE-68386NLT Description

Short technical summary and product information.

The Pulse Electronics PE-68386NLT is a pulse transformer with a specified inductance of 785µH and a turns ratio of 1:1. This component is designed for surface mount applications, offering a compact solution with dimensions of 8.64mm x 6.73mm and a height of 2.49mm.

It operates within a temperature range of -40°C to 130°C, making it suitable for various environmental conditions. The transformer's ET product rating is 9.7VµS. Its RoHS status is compliant, and it is classified under REACH unaffected.

This pulse transformer is categorized under Pulse Transformers and is suitable for applications requiring specific pulse shaping or signal isolation. The surface mount package facilitates automated assembly processes.

PE-68386NLT Quick Information

Product Type: Pulse Transformer

Canonical Name: Pulse Transformer 785µH 1:1 Surface Mount

Subcategory: Pulse Transformer

PE-68386NLT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PE-68386NLT Estimated Pricing

Qty	Low	High
1+	$3.00	$3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-68386NLT Features

Pulse transformer with 785µH inductance.
Features a 1:1 turns ratio.
Designed for surface mount applications.
Operates from -40°C to 130°C.
Compact dimensions: 8.64mm x 6.73mm x 2.49mm.

PE-68386NLT Applications

Suitable for pulse shaping circuits.
Used for signal isolation needs.
Ideal for compact electronic designs.
Applicable in wide temperature ranges.

PE-68386NLT FAQs

5 frequently asked questions generated from this part’s specifications.

What is the inductance of the PE-68386NLT pulse transformer?

The inductance of the PE-68386NLT is 785µH.

What is the turns ratio of the PE-68386NLT?

The turns ratio of the PE-68386NLT is 1:1.

What is the operating temperature range for the PE-68386NLT?

The PE-68386NLT operates in a temperature range of -40°C to 130°C.

What type of mounting does the PE-68386NLT use?

The PE-68386NLT uses surface mount technology.

What is the standard package quantity for the PE-68386NLT?

The standard package quantity for the PE-68386NLT is 1500 units.

Category	Pulse Transformers
Manufacturer Name	Pulse Electronics
ET (Volt	9.7VµS
Height	2.49mm (0.098")
Inductance	785µH
Length	8.64mm (0.340")
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 130°C
Turns Ratio	1:1
Width	6.73mm (0.265")
