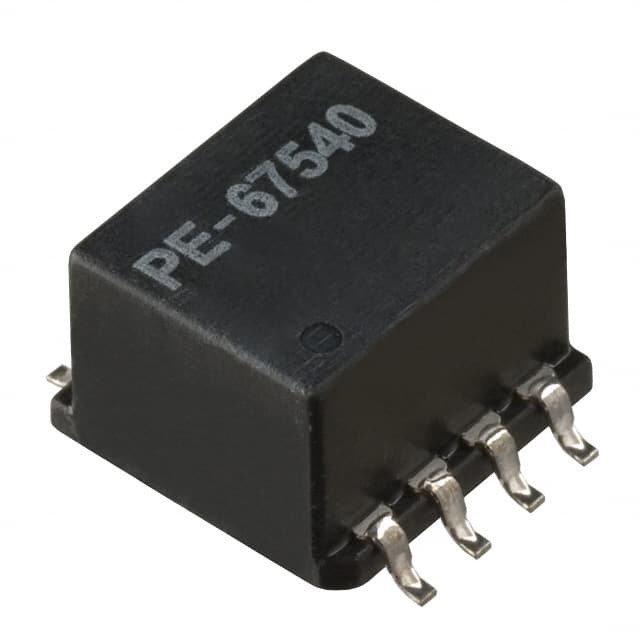

PE-67540T The Pulse Electronics PE-67540T is a common mode choke designed for signal line applications. It features 4 lines and a surface mount package.
Mfr Part #:

PE-67540T

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-67540T is a common mode choke designed for signal line applications. It features 4 lines and a surface mount package.
✓ Total Stock: 125 pcs
$ Price Range: $0.99

PE-67540T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-67540T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Lead Spacing
Length
Mounting Type
Number of Lines
Operating Temperature
Storage Temperature
Tape & Reel
Width
View Similar Products (0)

PE-67540T Description

Short technical summary and product information.

This Pulse Electronics PE-67540T is a common mode choke with a 4-line configuration, suitable for signal line filtering. It is designed for surface mount applications and has a maximum current rating of 1A.



The component has a maximum DC resistance (DCR) of 600mOhm and an operating temperature range of -40°C to 125°C. Its dimensions are 12.10mm in length and 15.30mm in width, with a maximum height of 8.89mm.



The PE-67540T is packaged in a vertical, 8 gull wing configuration and is available on tape and reel with 1500 units per reel. It is specified as RoHS3 Compliant, MSL 1, and REACH Unaffected.

PE-67540T Quick Information

Product Type: Common Mode Choke
Series: PA3747
Canonical Name: Pulse Electronics PE-67540T Common Mode Choke
Subcategory: Filters

PE-67540T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-67540T Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-67540T Features

  • 4-line common mode choke for signal lines.
  • Surface mountable with 8 gull wing leads.
  • Rated for 1A maximum current.
  • Low DC resistance of 600mOhm maximum.
  • Operates from -40°C to 125°C.

PE-67540T Applications

  • Filters common mode noise in signal lines.
  • Suitable for high-density surface mount designs.
  • Used in data communication equipment.
  • Applicable in telecommunication systems.

PE-67540T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the DC Resistance (DCR) of the PE-67540T?

The maximum DC Resistance (DCR) for the PE-67540T is 600mOhm.

How many lines does the PE-67540T common mode choke have?

The PE-67540T has 4 lines.

What is the mounting type for the PE-67540T?

The PE-67540T is a surface mount component.

What is the maximum height of the PE-67540T?

The maximum height for the PE-67540T is 8.89mm (0.350").

What is the operating temperature range for this common mode choke?

The PE-67540T operates within a temperature range of -40°C to 125°C.

What is the maximum current rating for the PE-67540T?

The maximum current rating for the PE-67540T is 1A.

What type of filter is the PE-67540T?

The PE-67540T is a signal line filter type.
