| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

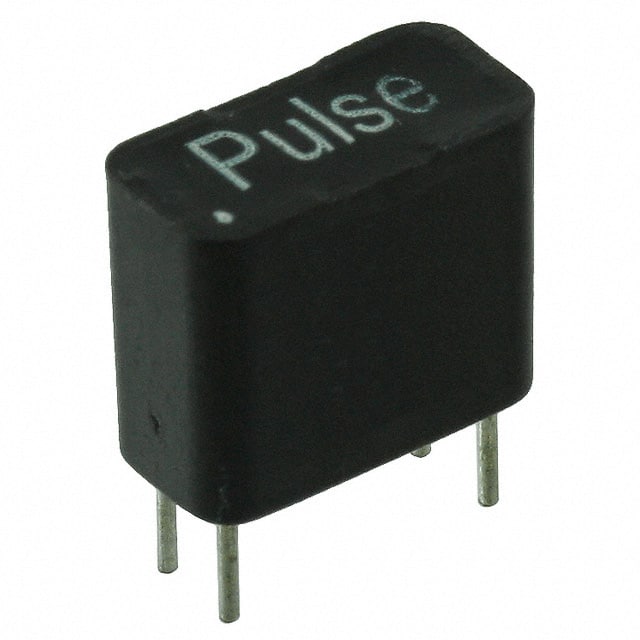

The Pulse Electronics PE-67531NL is a common mode choke designed for signal line applications. This component features a through-hole mounting type and a package described as Vertical, 4 PC Pin. It has 2 lines and a maximum DC resistance (DCR) of 600mOhm.
The physical dimensions include a length of 10.16mm (0.400 inches) and a width of 5.08mm (0.200 inches), with a maximum height of 8.89mm (0.350 inches). The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH status is REACH Unaffected. These attributes indicate a component suitable for various electronic designs requiring noise suppression.
This common mode choke is part of the broader category of filters, specifically designed to attenuate common-mode noise in signal lines. Its construction and specifications make it a reliable choice for applications where signal integrity is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC resistance (DCR) for the PE-67531NL is 600mOhm.
The PE-67531NL is a Signal Line filter.
The PE-67531NL common mode choke has 2 lines.
The PE-67531NL has a length of 10.16mm (0.400"), a width of 5.08mm (0.200"), and a maximum height of 8.89mm (0.350").
The PE-67531NL has a Through Hole mounting type.
The RoHS status of the PE-67531NL is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PE-67531NL is 1 Unlimited.
