| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Width |

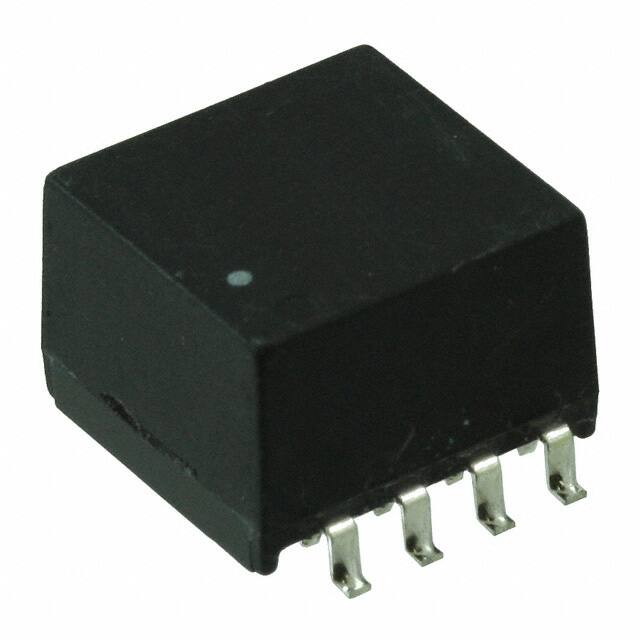

The Pulse Electronics PE-65857NLT is a common mode choke designed for surface mount applications. It is suitable for signal line filtering and helps reduce radiated EMI emissions by filtering common mode noise.
This component features 4 lines and operates within a temperature range of 0°C to 70°C. The inductance is rated at a minimum of 22.5 uH at 100 kHz, with a maximum DC resistance of 220 mOhm. Common mode attenuation is provided across a wide frequency range, with typical values reaching 38 dB at 50 MHz.
The PE-65857NLT is packaged in a vertical, 8 gull wing configuration for surface mounting. It is supplied on cut tape with a factory pack quantity of 250 units. This part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Applications for this common mode choke include LAN and telecom systems where EMI reduction is critical. Its compact size and surface mount capability make it suitable for integration into various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The primary inductance is a minimum of 22.5 uH at 100 KHz.
The maximum DC resistance (DCR) is 220 mOhm.
This common mode choke is designed for 4 lines.
The operating temperature range is 0°C to 70°C.
It is a surface mount component in a vertical, 8 gull wing package.
The typical common mode attenuation at 50 MHz is 38 dB.
