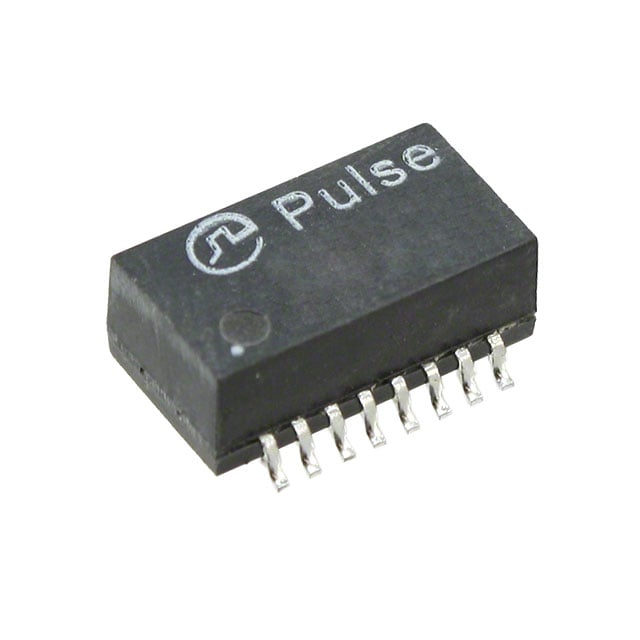

PE-65745NL The Pulse PE-65745NL is a LAN Isolation Transformer featuring 140µH inductance and a Surface Mount package. It operates within a temperature range of 0°C to 70°C.
Mfr Part #:

PE-65745NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse PE-65745NL is a LAN Isolation Transformer featuring 140µH inductance and a Surface Mount package. It operates within a temperature range of 0°C to 70°C.
✓ Total Stock: 14 pcs
$ Price Range: $3.00

PE-65745NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-65745NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Weight
Width
View Similar Products (0)

PE-65745NL Description

Short technical summary and product information.

The Pulse PE-65745NL is a LAN Isolation Transformer designed for data interface applications. It features a turns ratio of 1CT:1.414CT for transmitters and 1CT:1CT for receivers, with an inductance of 140µH.



This transformer has a compact size with dimensions of 12.70mm L x 7.24mm W and a height of 5.33mm. It is designed for surface mounting, making it suitable for various PCB designs. The operating temperature range is from 0°C to 70°C, and it weighs approximately 3.99g.



The PE-65745NL is RoHS3 Compliant and REACH Unaffected, indicating adherence to environmental standards. Its encapsulated design provides protection and enhances reliability in industrial and telecommunications environments.

PE-65745NL Quick Information

Product Type: LAN Isolation Transformer
Series: Pulse Transformers
Canonical Name: Pulse PE-65745NL LAN Isolation Transformer
Subcategory: Pulse Transformer

PE-65745NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-65745NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-65745NL Features

  • 140µH inductance for data isolation
  • Surface mount package for easy assembly
  • Operates from 0°C to 70°C temperature range
  • Encapsulated for electrical isolation
  • Supports 1CT:1.414CT turns ratio

PE-65745NL Applications

  • Suitable for industrial communication systems.
  • Used in telecommunications signal isolation.
  • Ideal for data interface applications.
  • Applicable in environments requiring high humidity tolerance.
  • Designed for use in high-temperature conditions.

PE-65745NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-65745NL transformer?

The inductance of the PE-65745NL transformer is 140µH.

What is the operating temperature range for the PE-65745NL transformer?

The PE-65745NL transformer operates within a temperature range of 0°C to 70°C.

What type of mounting is required for the PE-65745NL transformer?

The PE-65745NL transformer requires Surface Mount.

What is the turns ratio of the PE-65745NL transformer?

The turns ratio is 1CT:1.414CT for transmitters and 1CT:1CT for receivers.

What are the dimensions of the PE-65745NL transformer?

The dimensions are 12.70mm in length, 7.24mm in width, and 5.33mm in height.

Is the PE-65745NL transformer RoHS compliant?

Yes, the PE-65745NL transformer is RoHS3 Compliant.
