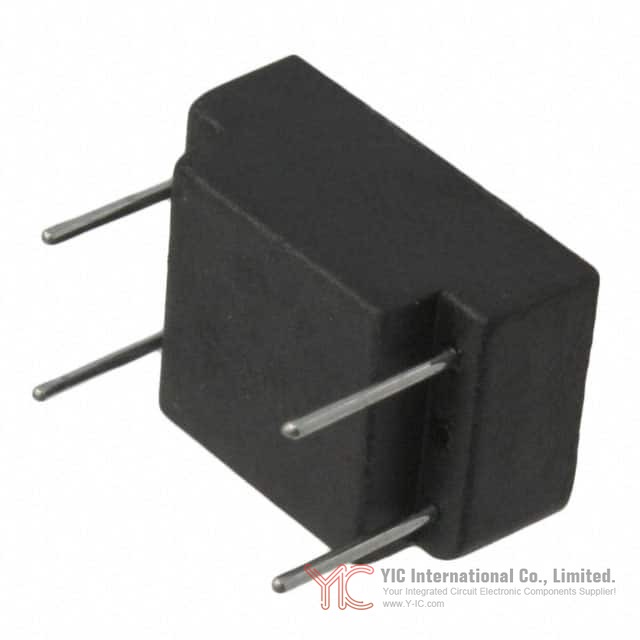

PE-65662T The Pulse Electronics PE-65662T is a pulse transformer featuring 45µH inductance and a 1:1 turns ratio. It is designed for surface mount applications.
Mfr Part #:

PE-65662T

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-65662T is a pulse transformer featuring 45µH inductance and a 1:1 turns ratio. It is designed for surface mount applications.
✓ Total Stock: 405 pcs
$ Price Range: $3.00

PE-65662T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
405 pcs
On Request
405 pcs On Request 1 On Request On Request 00+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-65662T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Transformer Type
Turns Ratio
Width
View Similar Products (0)

PE-65662T Description

Short technical summary and product information.

The Pulse Electronics PE-65662T is a pulse transformer designed for various applications, including T3/DS3/E3/STS-1 interfaces. It features a nominal inductance of 45µH and a turns ratio of 1:1.



This transformer is constructed for surface mounting, offering convenience in PCB assembly. Its dimensions are 7.62mm in length and width, with a height of 5.33mm, making it suitable for compact designs. The component is specified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these compliance statuses are unverified.



Key electrical characteristics include its specific transformer type designation as T3/E3 (Single). The compact size and surface mount capability make it a versatile component for signal transmission and isolation in electronic circuits.

PE-65662T Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics PE-65662T Pulse Transformer
Subcategory: Pulse Transformer

PE-65662T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-65662T Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-65662T Features

  • Pulse transformer with 45µH inductance.
  • Features a 1:1 turns ratio.
  • Designed for surface mount applications.
  • Compact dimensions: 7.62mm x 7.62mm x 5.33mm.
  • Suitable for T3/DS3/E3/STS-1 interfaces.

PE-65662T Applications

  • Used in T3/DS3/E3/STS-1 systems.
  • Ideal for signal isolation needs.
  • Suitable for compact PCB designs.
  • Facilitates signal transmission circuits.

PE-65662T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-65662T transformer?

The inductance of the PE-65662T transformer is 45µH.

What is the turns ratio of the PE-65662T transformer?

The turns ratio of the PE-65662T transformer is 1:1.

How is the PE-65662T transformer mounted?

The PE-65662T transformer is designed for surface mount.

What are the dimensions of the PE-65662T transformer?

The PE-65662T transformer has dimensions of 7.62mm in length and width, and a height of 5.33mm.

What is the transformer type for the PE-65662T?

The transformer type for the PE-65662T is T3/E3 (Single).
