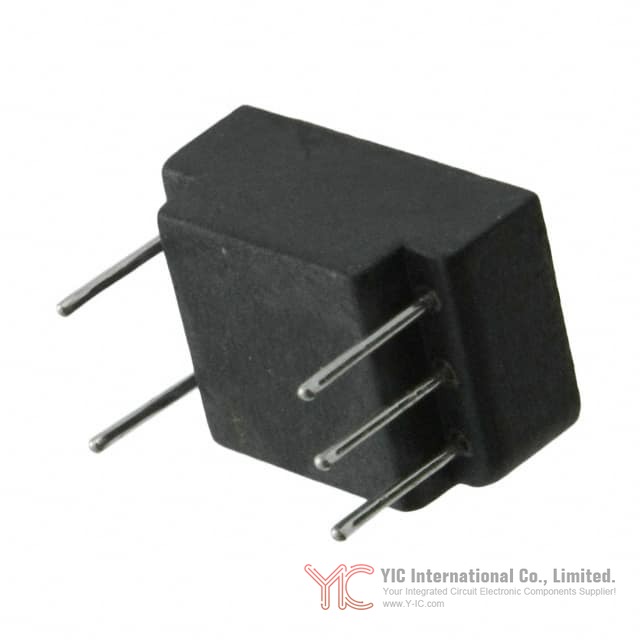

PE-64934NL The Pulse Electronics PE-64934NL is a T1/E1 single pulse transformer. It features through hole mounting and an operating temperature range of 0°C to 70°C.
Mfr Part #:

PE-64934NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-64934NL is a T1/E1 single pulse transformer. It features through hole mounting and an operating temperature range of 0°C to 70°C.
✓ Total Stock: 180 pcs
$ Price Range: $3.00

PE-64934NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
180 pcs
On Request
180 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-64934NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Width
View Similar Products (0)

PE-64934NL Description

Short technical summary and product information.

This Pulse Electronics PE-64934NL is a T1/E1 single pulse transformer designed for various applications. It offers an inductance of 1.2mH and a turns ratio of 1CT:1. The transformer is suitable for operation within a temperature range of 0°C to 70°C.



With a height of 6.35mm, a length of 12.70mm, and a width of 8.89mm, this component is designed for through-hole mounting. Its specifications make it a reliable choice for signal isolation and impedance matching in electronic circuits.



The PE-64934NL adheres to RoHS3 compliance standards, indicating its suitability for use in environmentally conscious designs. Its MSL rating of 1 Unlimited suggests no special handling is required for moisture sensitivity.

PE-64934NL Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics PE-64934NL T1/E1 Single Transformer
Subcategory: Pulse Transformer

PE-64934NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-64934NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-64934NL Features

  • 1.2mH inductance pulse transformer.
  • T1/E1 single transformer type.
  • Through hole mounting design.
  • 0°C to 70°C operating temperature.
  • RoHS3 compliant.

PE-64934NL Applications

  • Used in T1/E1 digital transmission systems.
  • Suitable for ISDN-PRI communication interfaces.
  • Ideal for pulse transformer applications in telecom.
  • Supports 1:1 turns ratio for signal isolation.

PE-64934NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-64934NL transformer?

The inductance is 1.2mH.

What is the operating temperature range for the PE-64934NL?

The operating temperature range is 0°C to 70°C.

How is the PE-64934NL transformer mounted?

The PE-64934NL transformer is designed for through hole mounting.

What is the turns ratio of the PE-64934NL?

The turns ratio is 1CT:1.

What is the RoHS status of the PE-64934NL?

The PE-64934NL is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the PE-64934NL?

The Moisture Sensitivity Level is 1 Unlimited.
