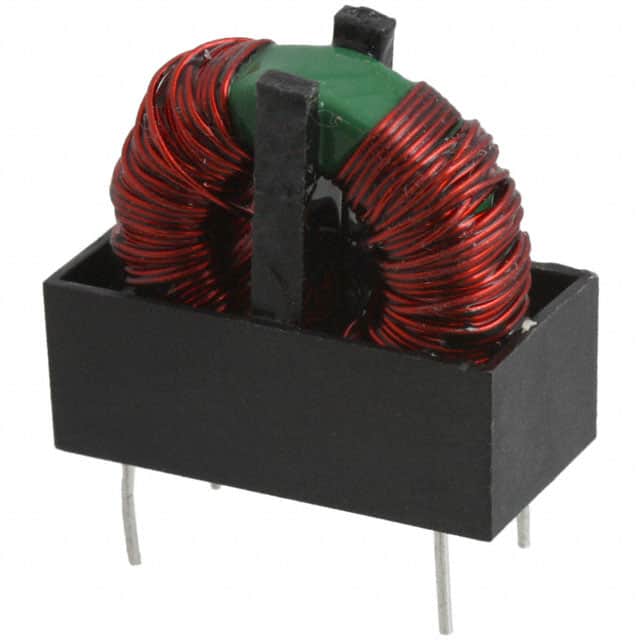

PE-62911NL The Pulse Electronics PE-62911NL is a power line common mode choke with 10mH inductance and a 1.8A current rating. It features a Through Hole mounting type.
Mfr Part #:

PE-62911NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-62911NL is a power line common mode choke with 10mH inductance and a 1.8A current rating. It features a Through Hole mounting type.
✓ Total Stock: 10 pcs
$ Price Range: $0.99

PE-62911NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-62911NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height
Height (Max)
Inductance @ Frequency
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

PE-62911NL Description

Short technical summary and product information.

This Pulse Electronics PE-62911NL is a common mode choke designed for power line filtering applications. It offers an inductance of 10 mH at 1 kHz and can handle a maximum current rating of 1.8A. The choke has a DC resistance of 240mOhm maximum and operates within a temperature range of -40°C to 125°C.



Featuring a Through Hole mounting type, this component is housed in a vertical package with 4 PC pins. Its dimensions are 29.21mm in length and 14.22mm in width, with a maximum height of 29.46mm. The device has 2 lines and is RoHS3 Compliant, with an MSL rating of 1.



This common mode choke is suitable for various power filtering needs where noise suppression is critical. Its robust construction and specified electrical characteristics make it a reliable choice for industrial and commercial applications.

PE-62911NL Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics PE-62911NL Common Mode Choke

PE-62911NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-62911NL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-62911NL Features

  • 10mH inductance at 1 kHz.
  • Rated for 1.8A maximum current.
  • Through Hole mounting type.
  • Operates from -40°C to 125°C.
  • RoHS3 Compliant.

PE-62911NL Applications

  • Ideal for power line noise filtering.
  • Used in EMI suppression circuits.
  • Suitable for industrial applications.
  • Effective for signal line conditioning.

PE-62911NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-62911NL?

The inductance is 10 mH at 1 kHz.

What is the maximum current rating for this common mode choke?

The maximum current rating is 1.8A.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

How is the PE-62911NL mounted?

It is mounted using the Through Hole method.

Is this component RoHS compliant?

Yes, it is RoHS3 Compliant.
