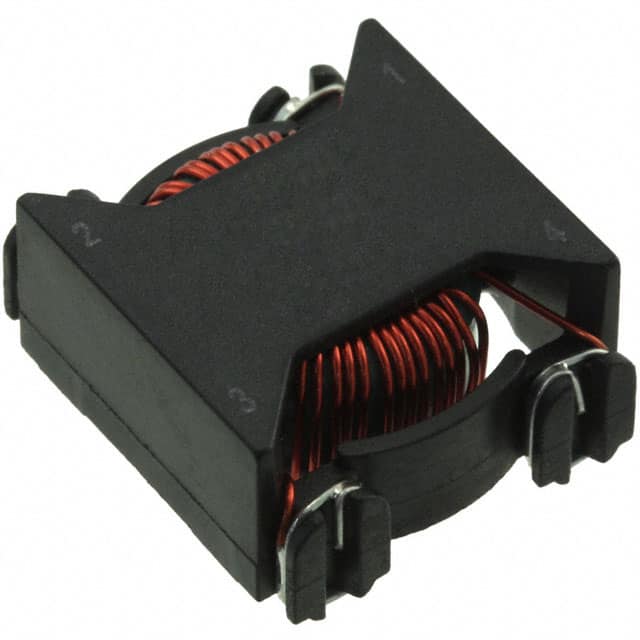

PE-53910NL The Pulse Electronics PE-53910NL is a surface mount common mode inductor designed for noise suppression. It offers a current rating of 3.6A and a voltage rating of 250Vac.
Mfr Part #:

PE-53910NL

Available from 3 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-53910NL is a surface mount common mode inductor designed for noise suppression. It offers a current rating of 3.6A and a voltage rating of 250Vac.
✓ Total Stock: 324 pcs
$ Price Range: $0.99

PE-53910NL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-53910NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR) (Max)
Height
Height (Max)
Inductance
Lead Spacing
Length
Mounting Type
Number of Lines
Operating Temperature
Storage Temperature
Tape & Reel
Termination Style
Voltage Rating
Width
View Similar Products (0)

PE-53910NL Description

Short technical summary and product information.

The Pulse Electronics PE-53910NL is a surface mount common mode inductor with a current rating of 3.6A and a voltage rating of 250Vac. It operates within a temperature range of -40°C to 130°C.



This inductor is designed for noise suppression applications, featuring a low RFI toroid and pick and place compatibility for automated assembly. Its compact size and surface mount termination make it suitable for integration into various electronic circuits.



The PE-53910NL has a maximum DC resistance of 50mOhm and a minimum inductance of 0.6mH. It is available in tape and reel packaging, facilitating high-volume manufacturing processes.



Key mechanical dimensions include a length of 19.56mm (0.770"), a width of 17.02mm (0.670"), and a maximum height of 9.90mm (0.390"). The component has 2 lines and is designed for horizontal mounting with 4 PC pads.

PE-53910NL Quick Information

Product Type: Common Mode Inductor
Canonical Name: Pulse Electronics PE-53910NL Common Mode Inductor
Subcategory: Inductors, Chokes & Coils

PE-53910NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-53910NL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-53910NL Features

  • Surface mount common mode inductor.
  • 3.6A maximum current rating.
  • 250Vac voltage rating.
  • Operating temperature -40°C to 130°C.
  • Tape and reel packaging available.

PE-53910NL Applications

  • Ideal for RFI noise suppression.
  • Suitable for automated assembly.
  • Used in digital audio systems.
  • Compact SMD component.

PE-53910NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum current rating for the PE-53910NL?

The maximum current rating for the PE-53910NL is 3.6A.

What is the voltage rating of the PE-53910NL common mode inductor?

The voltage rating of the PE-53910NL is 250Vac.

What is the operating temperature range for the PE-53910NL?

The PE-53910NL operates within a temperature range of -40°C to 130°C.

What is the inductance of the PE-53910NL?

The minimum inductance of the PE-53910NL is 0.6 mH.

What is the DC resistance (DCR) of the PE-53910NL?

The maximum DC resistance (DCR) of the PE-53910NL is 50 mOhm.

What type of package is the PE-53910NL?

The PE-53910NL is a surface mount component in a Horizontal, 4 PC Pad package.
