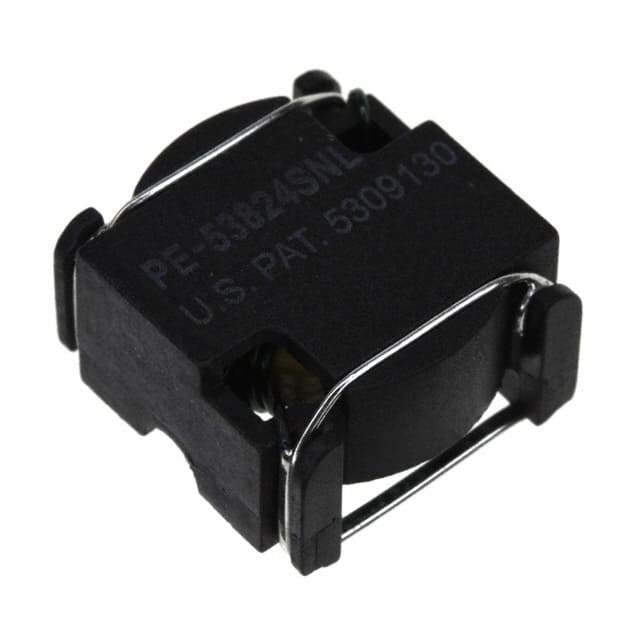

PE-53824SNLT The Pulse Electronics PE-53824SNLT is a toroidal shielded fixed inductor with a 26µH inductance and a 1.48A current rating. It features a surface mount package.
Mfr Part #:

PE-53824SNLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-53824SNLT is a toroidal shielded fixed inductor with a 26µH inductance and a 1.48A current rating. It features a surface mount package.
✓ Total Stock: 600 pcs
$ Price Range: $0.52

PE-53824SNLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-53824SNLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

PE-53824SNLT Description

Short technical summary and product information.

The Pulse Electronics PE-53824SNLT is a toroidal, shielded fixed inductor designed for surface mount applications. It offers an inductance value of 26µH and can handle a current rating of 1.48A. The DC resistance (DCR) is 100mOhm, with a tolerance of ±20%.



This inductor operates within a temperature range of -40°C to 130°C. Its dimensions are 14.48mm in length, 14.35mm in width, and 9.14mm in height. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. The REACH status is REACH Unaffected.



This component is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact, surface-mountable form factor.

PE-53824SNLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-53824SNLT Toroidal Shielded Fixed Inductor 26µH 1.48A 100mOhm ±20%
Subcategory: Fixed Inductor

PE-53824SNLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-53824SNLT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-53824SNLT Features

  • Toroidal shielded fixed inductor.
  • 26µH inductance and 1.48A current rating.
  • Low 100mOhm DC resistance.
  • Surface mountable package.
  • Wide operating temperature range.

PE-53824SNLT Applications

  • Suitable for power supply circuits.
  • Used in signal filtering applications.
  • Ideal for compact electronic designs.
  • General purpose inductor applications.

PE-53824SNLT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-53824SNLT?

The inductance of the PE-53824SNLT is 26µH.

What is the current rating for this Pulse Electronics inductor?

The current rating for the PE-53824SNLT is 1.48A.

What is the DC Resistance (DCR) of the PE-53824SNLT?

The DC Resistance (DCR) is 100mOhm.

What is the operating temperature range for the PE-53824SNLT?

The operating temperature range is -40°C to 130°C.

What type of inductor is the PE-53824SNLT?

The PE-53824SNLT is a toroidal, shielded fixed inductor.

What are the dimensions of the PE-53824SNLT?

The dimensions are 14.48mm in length, 14.35mm in width, and 9.14mm in height.
