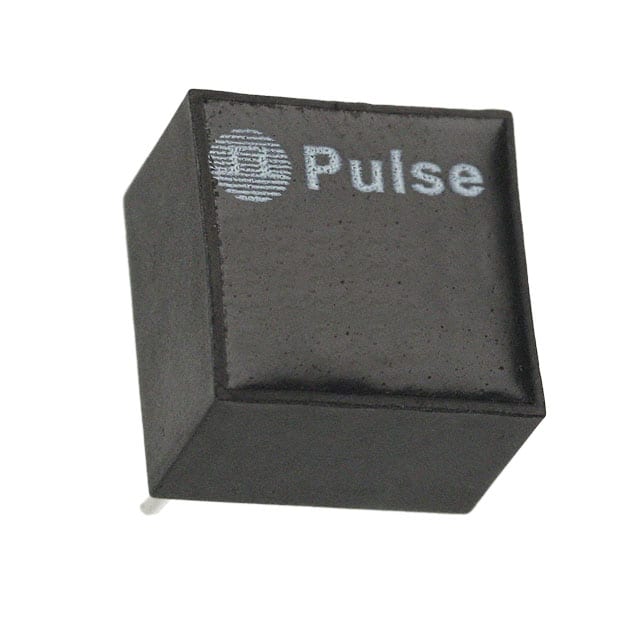

PE-53822NL The Pulse Electronics PE-53822NL is a toroidal fixed inductor with a 54µH inductance and a 1A current rating. It is designed for through-hole mounting.
Mfr Part #:

PE-53822NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-53822NL is a toroidal fixed inductor with a 54µH inductance and a 1A current rating. It is designed for through-hole mounting.
✓ Total Stock: 30 pcs
$ Price Range: $0.52

PE-53822NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-53822NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Rated Current
Shielding
Tolerance
Type
Width
View Similar Products (0)

PE-53822NL Description

Short technical summary and product information.

The Pulse Electronics PE-53822NL is a shielded, toroidal fixed inductor designed for through-hole mounting. It offers a nominal inductance of 54µH with a tolerance of ±20% and a rated current of 1A. The DC resistance (DCR) is 200mOhm.



This inductor operates within a temperature range of -40°C to 130°C. Its dimensions are 12.57mm in length and width, and 9.52mm in height. The base material meets flammability requirements of UL 94V-0.



This part is tested and recommended by National Semiconductor for use with their 150kHz Simple Switcher™ power supply controllers.

PE-53822NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-53822NL Toroidal Fixed Inductor
Subcategory: Toroidal

PE-53822NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-53822NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-53822NL Features

  • Shielded toroidal fixed inductor.
  • 54µH nominal inductance.
  • 1A rated current.
  • Through hole mounting.
  • Operating temperature -40°C to 130°C.

PE-53822NL Applications

  • Used in power supply filtering circuits
  • Suitable for RF signal filtering
  • Applied in electronic circuit noise suppression
  • Ideal for automotive and industrial electronics

PE-53822NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-53822NL?

The nominal inductance of the PE-53822NL is 54 µH.

What is the current rating for the PE-53822NL?

The rated current for the PE-53822NL is 1 A.

What is the DC resistance (DCR) of the PE-53822NL?

The DC resistance (DCR) of the PE-53822NL is 200 mOhm.

What is the operating temperature range for this inductor?

The operating temperature range for the PE-53822NL is -40°C to 130°C.

What type of mounting does the PE-53822NL use?

The PE-53822NL uses through-hole mounting.

What is the package type for the PE-53822NL?

The package type for the PE-53822NL is Radial, Vertical - Corner Terminals.
